SKU: FB-12-MB

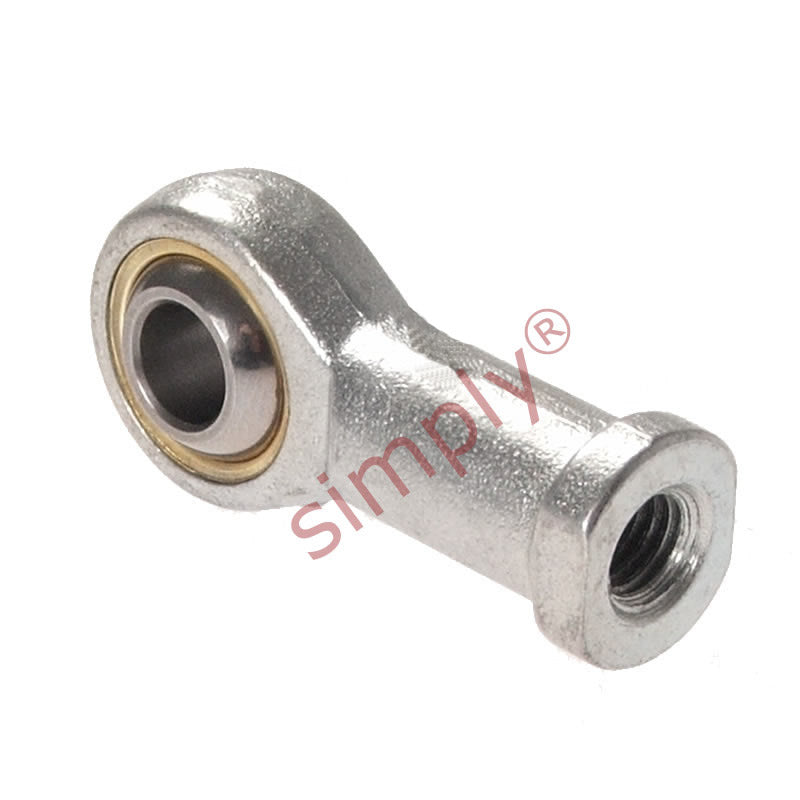

Branded FB-12 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 3/4 UNF Thread - Allow 7-10 Days
- Regular price
- $38.71 ex VAT
- Sale price
- $38.71
- Regular price
-
Not in stock
Quantity Price Breaks
10
$34.45
19
$32.52
29
$32.13
39
$31.74
49
$31.36
74
$30.97
99
$29.03
199
$28.65
249
$28.26
499
$27.87
999
$27.10
SKU:
FB-12-MB
Branded FB-12 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 3/4 UNF Thread - Allow 7-10 Days
- Regular price
- $38.71 ex VAT
- Sale price
- $38.71
- Regular price
-
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
Technical
| Bore size | = | 3/4 inch |
| Thread | = | 3/4 UNF |
| W | = | 0.875 inch |
| H | = | 0.687 inch |
| D | = | 1.875 inch |
| L1 | = | 2.875 inch |
| L2 | = | 1.562 inch |
| O | = | 0.978 inch |
| AF | = | 1 inch |
| Static load | = | 28640 N |
Downloads
Reviews
