SKU: FB-16-MB

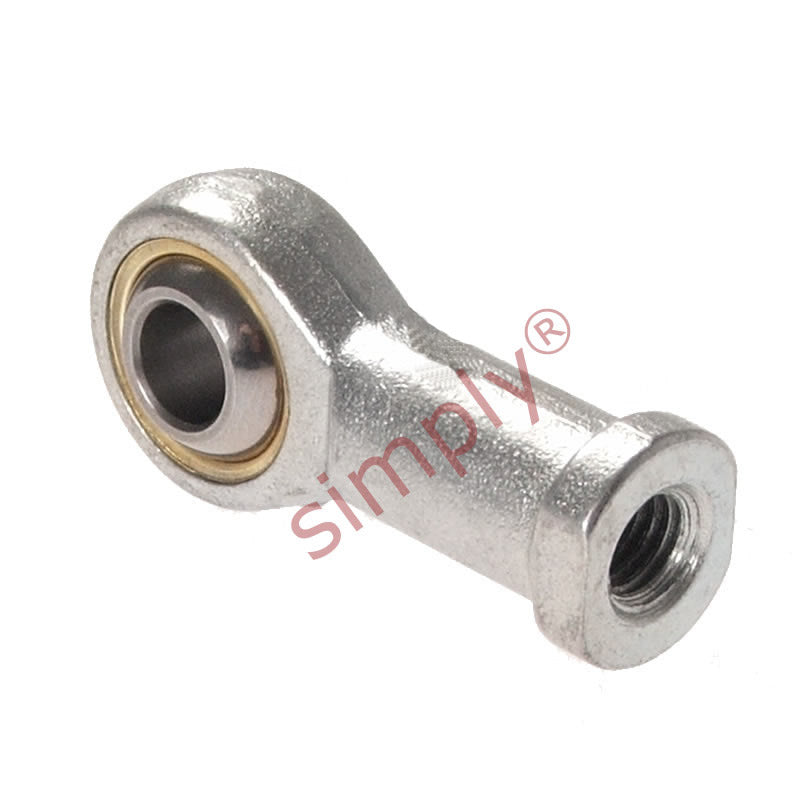

Branded FB-16 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1 UNF Thread - Allow 7-10 Days
- Regular price
- $84.19 ex VAT
- Sale price
- $84.19
- Regular price
-
Not in stock
Quantity Price Breaks
10
$74.93
19
$70.72
29
$69.88
39
$69.04
49
$68.19
74
$67.35
99
$63.14
199
$62.30
249
$61.46
499
$60.62
999
$58.93
SKU:
FB-16-MB
Branded FB-16 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1 UNF Thread - Allow 7-10 Days
- Regular price
- $84.19 ex VAT
- Sale price
- $84.19
- Regular price
-
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
Technical
| Bore size | = | 1 inch |
| Thread | = | 1 UNF |
| W | = | 1.375 inch |
| H | = | 1 inch |
| D | = | 2.75 inch |
| L1 | = | 4.125 inch |
| L2 | = | 2.125 inch |
| O | = | 1.275 inch |
| AF | = | 1.5 inch |
| Static load | = | 47500 N |
