SKU: FB-M05S-MB

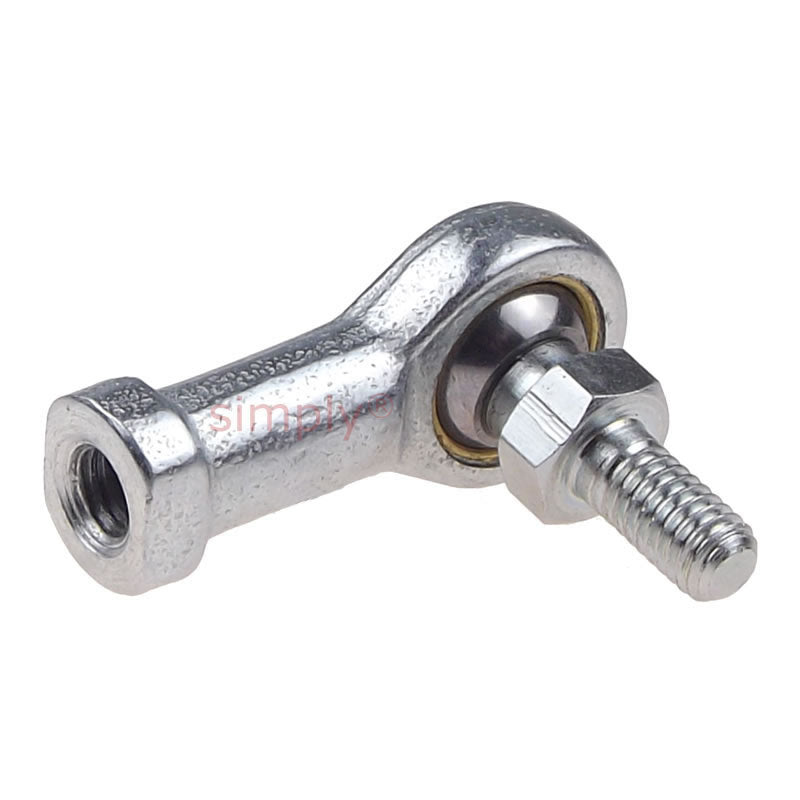

Branded FB-M05S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M5x0.8 Thread
- Regular price
- $14.50 ex VAT
- Sale price
- $14.50
- Regular price
-
In stock
Quantity Price Breaks
10
$12.91
19
$12.18
29
$12.04
39
$11.89
49
$11.75
74
$11.60
99
$10.88
199
$10.73
249
$10.59
499
$10.44
999
$10.15
SKU:
FB-M05S-MB
Branded FB-M05S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M5x0.8 Thread
- Regular price
- $14.50 ex VAT
- Sale price
- $14.50
- Regular price
-
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Technical
| Stud size | = | M5 |
| Thread | = | M5x0.8 |
| A | = | 10mm |
| B | = | 10mm |
| C | = | 8mm |
| K | = | 9mm |
| Static load | = | 1200 N |
