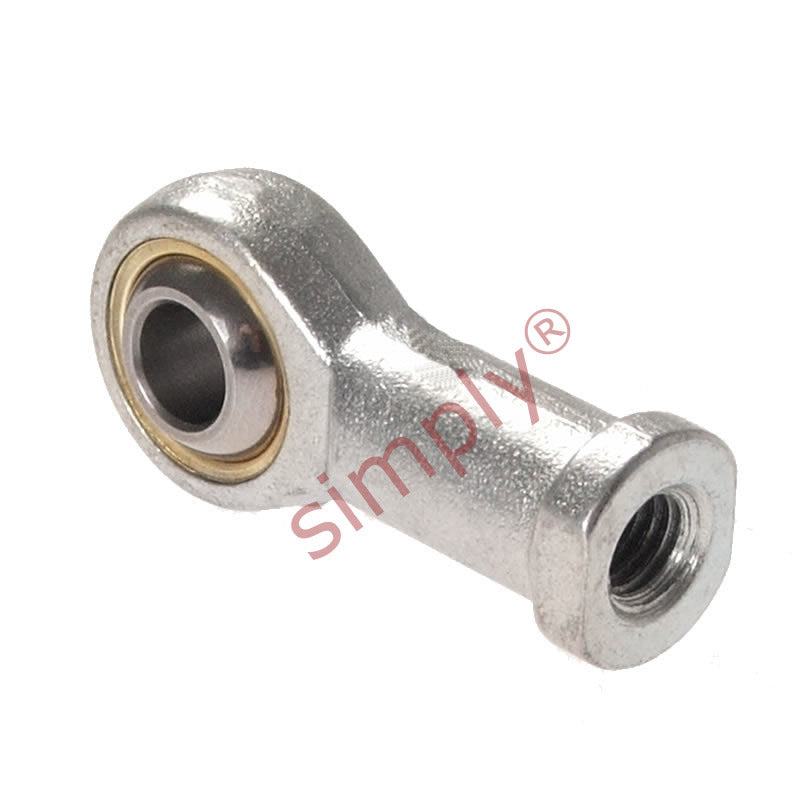

Branded FB-M06 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M6x1 Thread

SKU: FB-M06-MB

Branded FB-M06 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M6x1 Thread

$6.86 ex VAT
$6.86
ex VAT
Equivalent to: PHS6
In stock

Quantity Price Breaks

10 $6.11
19 $5.76
29 $5.69
39 $5.63
49 $5.56
74 $5.49
99 $5.15
199 $5.08
249 $5.01
499 $4.94
999 $4.80
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Branded FB-M06 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M6x1 Thread
SKU: FB-M06-MB

Branded FB-M06 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M6x1 Thread

$6.86 ex VAT
$6.86
ex VAT

Description

FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c
Benefits: Low friction, extended wear life

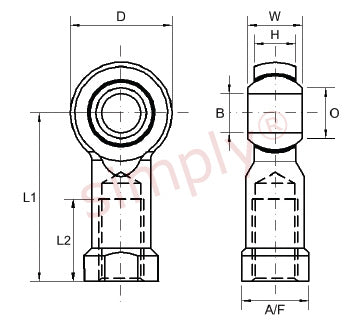

Technical

Bore size = 6mm
Thread = M6x1
W = 9mm
H = 6.75mm
D = 18mm
L1 = 30mm
L2 = 14mm
O = 9.3mm
AF = 11mm
Static load = 6820 N
