SKU: FB-M08-MB

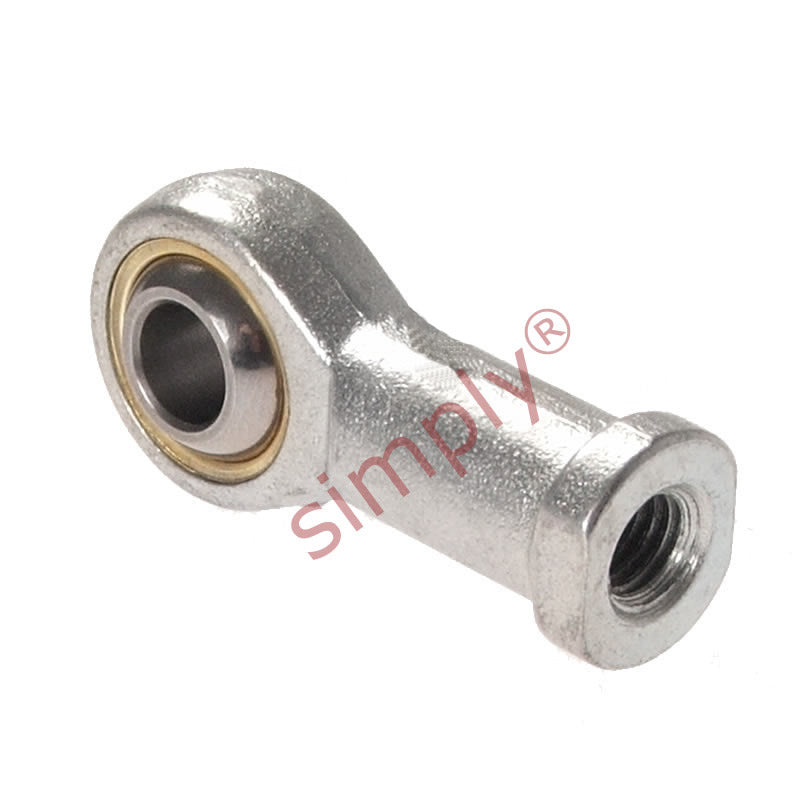

Branded FB-M08 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M8x1.25 Thread

Name: Branded FB-M08 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M8x1.25 Thread
Brand: Major Brand
SKU: FB-M08-MB
Price: 11.36 USD
Availability: InStock

$11.36 ex VAT

Sale Sold out

Equivalent to: PHS8

In stock

Price Break

10+ $7.61

19+ $7.18

29+ $7.10

39+ $7.01

49+ $6.93

74+ $6.84

99+ $6.41

199+ $6.33

249+ $6.24

499+ $6.16

999+ $5.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c
Benefits: Low friction, extended wear life

Brand / Quality:: Major Brand - High Quality
Thread Size:: M8x1.25
Thread M / F:: Female
Thread Direction:: Right Hand
Material:: Bronze Lined

Technical

Bore size	8mm
Thread	M8x1.25
W	12mm
H	9mm
D	22mm
L1	36mm
L2	17mm
O	10.4mm
AF	14mm
Static load	10450 N
