SKU: FB-M12 SS-MB

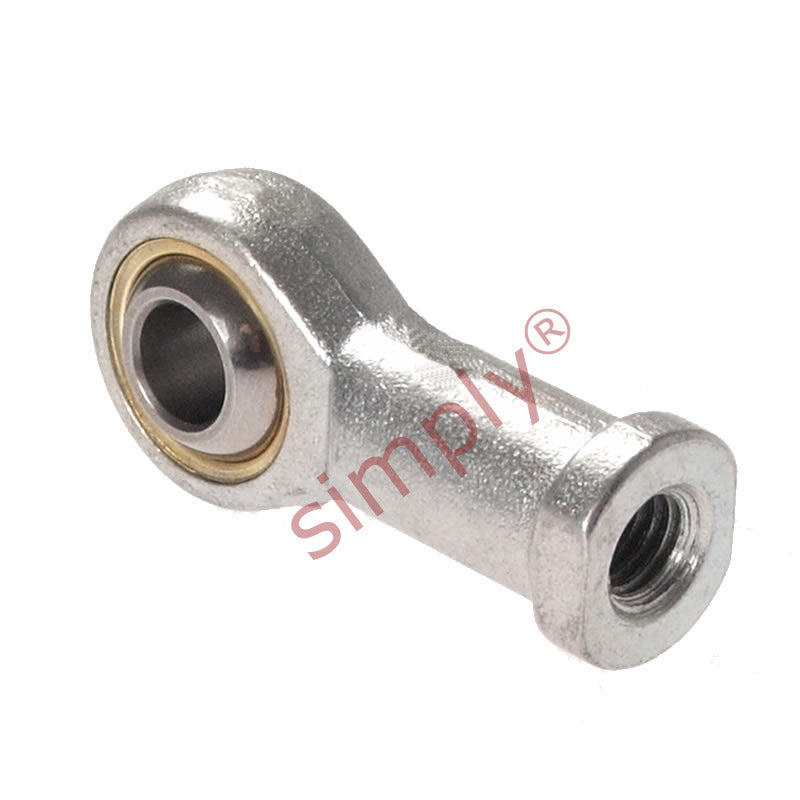

Branded FB-M12 Right Hand Metric Stainless Steel / Bronze Lined Maintenance Required Plain Female Rod End M12x1.75 Thread
- Regular price
- $38.71 ex VAT
- Sale price
- $38.71
- Regular price
-
In stock
Quantity Price Breaks
10
$34.45
19
$32.52
29
$32.13
39
$31.74
49
$31.36
74
$30.97
99
$29.03
199
$28.65
249
$28.26
499
$27.87
999
$27.10
SKU:
FB-M12 SS-MB
Branded FB-M12 Right Hand Metric Stainless Steel / Bronze Lined Maintenance Required Plain Female Rod End M12x1.75 Thread
- Regular price
- $38.71 ex VAT
- Sale price
- $38.71
- Regular price
-
Description
|
FB Stainless Steel Series Maintenance Required Female Rod Ends: The stainless steel FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| Bore size | = | 12mm |
| Thread | = | M12x1.75 |
| W | = | 16mm |
| H | = | 12mm |
| D | = | 30mm |
| L1 | = | 50mm |
| L2 | = | 24mm |
| O | = | 15.4mm |
| AF | = | 19mm |
| Static load | = | 18745 N |
