SKU: FB-M12S-MB

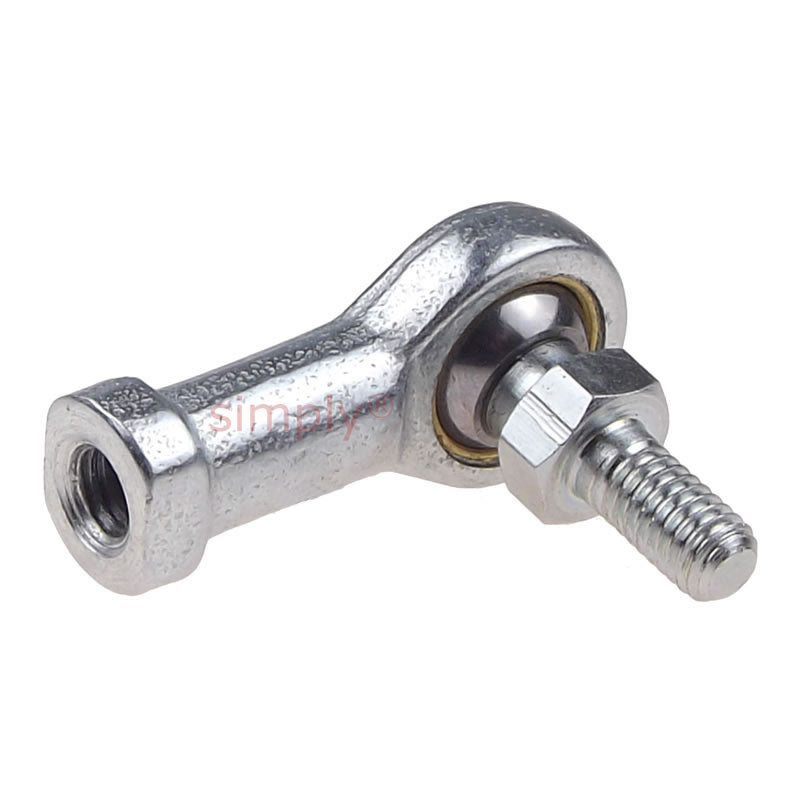

Branded FB-M12S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M12x1.75 Thread
- Regular price
- $25.97 ex VAT
- Sale price
- $25.97
- Regular price
-
In stock
Quantity Price Breaks
10
$23.11
19
$21.81
29
$21.56
39
$21.30
49
$21.04
74
$20.78
99
$19.48
199
$19.22
249
$18.96
499
$18.70
999
$18.18
SKU:
FB-M12S-MB
Branded FB-M12S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M12x1.75 Thread
- Regular price
- $25.97 ex VAT
- Sale price
- $25.97
- Regular price
-
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Technical
| Stud size | = | M12 |
| Thread | = | M12x1.75 |
| A | = | 24mm |
| B | = | 24mm |
| C | = | 21mm |
| K | = | 19mm |
| Static load | = | 5720 N |
