SKU: FB-M14-MB

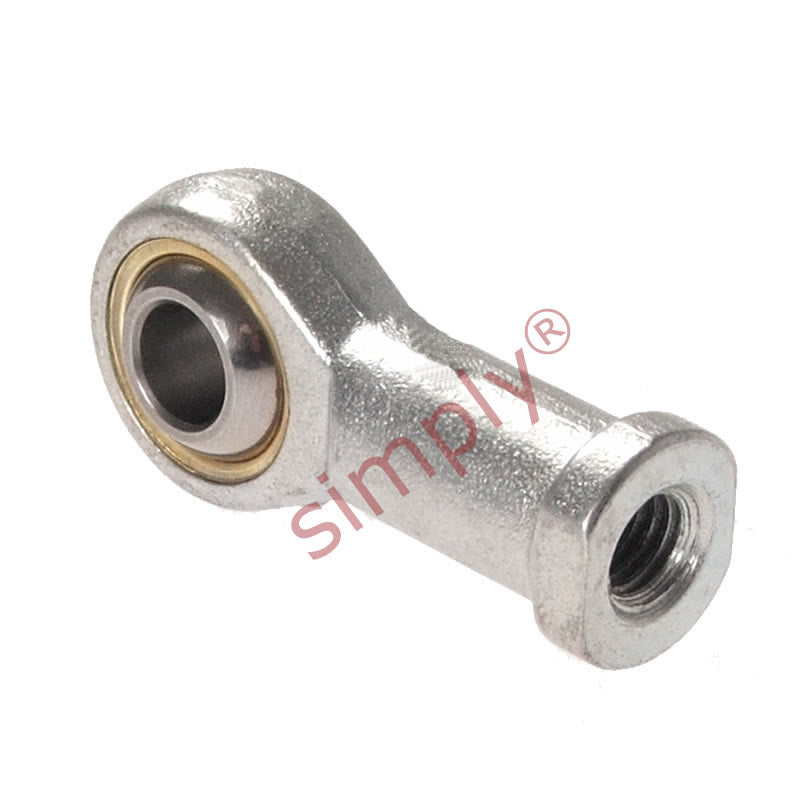

Branded FB-M14 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M14x2 Thread - Allow 7-10 Days
- Regular price
- $22.25 ex VAT
- Sale price
- $22.25
- Regular price
-
Not in stock
Quantity Price Breaks
10
$19.80
19
$18.69
29
$18.47
39
$18.25
49
$18.02
74
$17.80
99
$16.69
199
$16.47
249
$16.24
499
$16.02
999
$15.58
SKU:
FB-M14-MB
Branded FB-M14 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M14x2 Thread - Allow 7-10 Days
- Regular price
- $22.25 ex VAT
- Sale price
- $22.25
- Regular price
-
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
Technical
| Bore size | = | 14mm |
| Thread | = | M14x2 |
| W | = | 19mm |
| H | = | 13.5mm |
| D | = | 34mm |
| L1 | = | 57mm |
| L2 | = | 27mm |
| O | = | 16.8mm |
| AF | = | 22mm |
| Static load | = | 22125 N |
