SKU: FB-M16G-MB

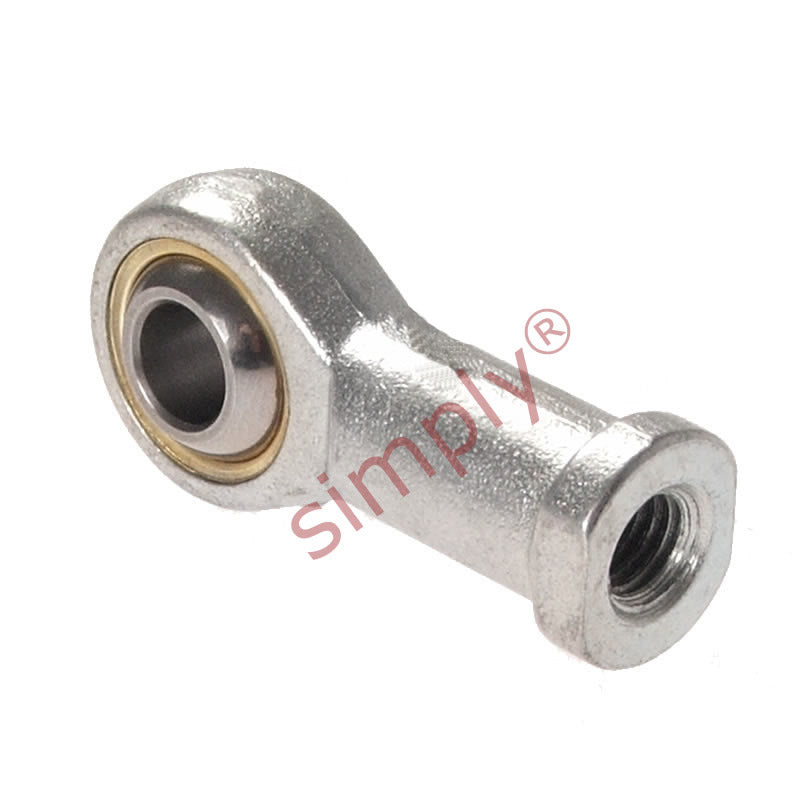

Branded FB-M16G Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x2 Thread
- Regular price
- $25.97 ex VAT
- Sale price
- $25.97
- Regular price
-
In stock
Quantity Price Breaks
10
$23.11
19
$21.81
29
$21.56
39
$21.30
49
$21.04
74
$20.78
99
$19.48
199
$19.22
249
$18.96
499
$18.70
999
$18.18
SKU:
FB-M16G-MB
Branded FB-M16G Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x2 Thread
- Regular price
- $25.97 ex VAT
- Sale price
- $25.97
- Regular price
-
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
Technical
| Bore size | = | 16mm |
| Thread | = | M16x2 |
| W | = | 21mm |
| H | = | 15mm |
| D | = | 38mm |
| L1 | = | 64mm |
| L2 | = | 33mm |
| O | = | 19.3mm |
| AF | = | 24mm |
| Static load | = | 23700 N |
