SKU: FB-M16S-MB

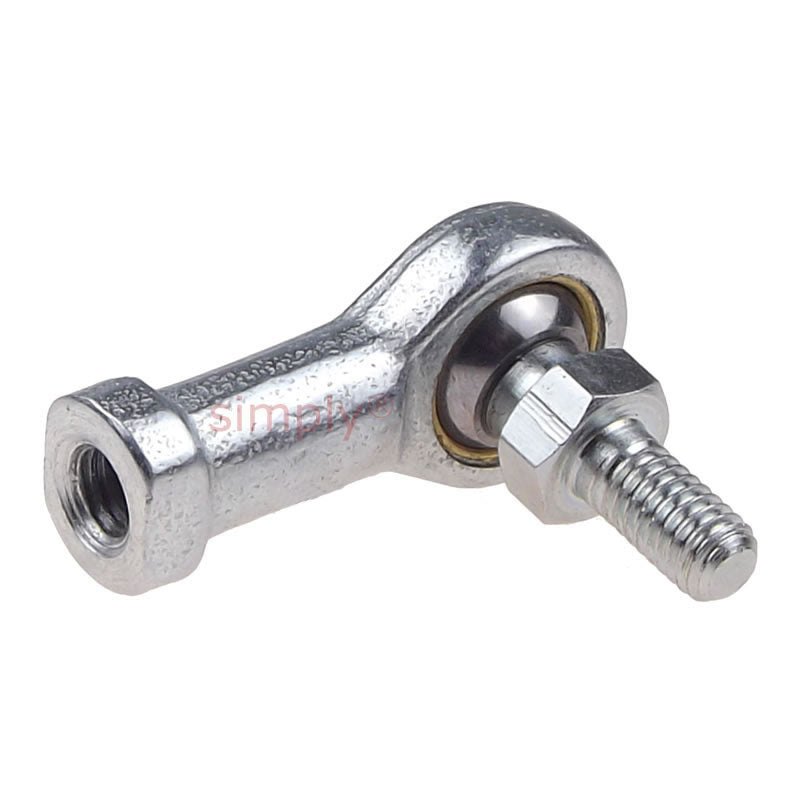

Branded FB-M16S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M16x2 Thread
- Regular price
- $35.49 ex VAT
- Sale price
- $35.49
- Regular price
-
In stock
Quantity Price Breaks
10
$31.59
19
$29.81
29
$29.46
39
$29.10
49
$28.75
74
$28.39
99
$26.62
199
$26.26
249
$25.91
499
$25.55
999
$24.84
SKU:
FB-M16S-MB
Branded FB-M16S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M16x2 Thread
- Regular price
- $35.49 ex VAT
- Sale price
- $35.49
- Regular price
-
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |

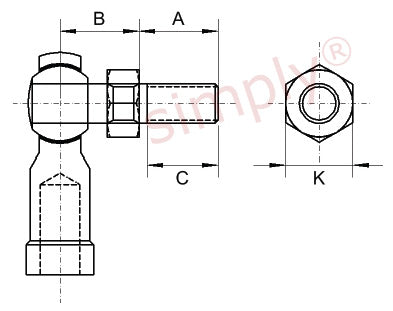

Technical
| Stud size | = | M16 |
| Thread | = | M16x2 |
| A | = | 32mm |
| B | = | 32mm |
| C | = | 29mm |
| K | = | 24mm |
| Static load | = | 9000 N |
