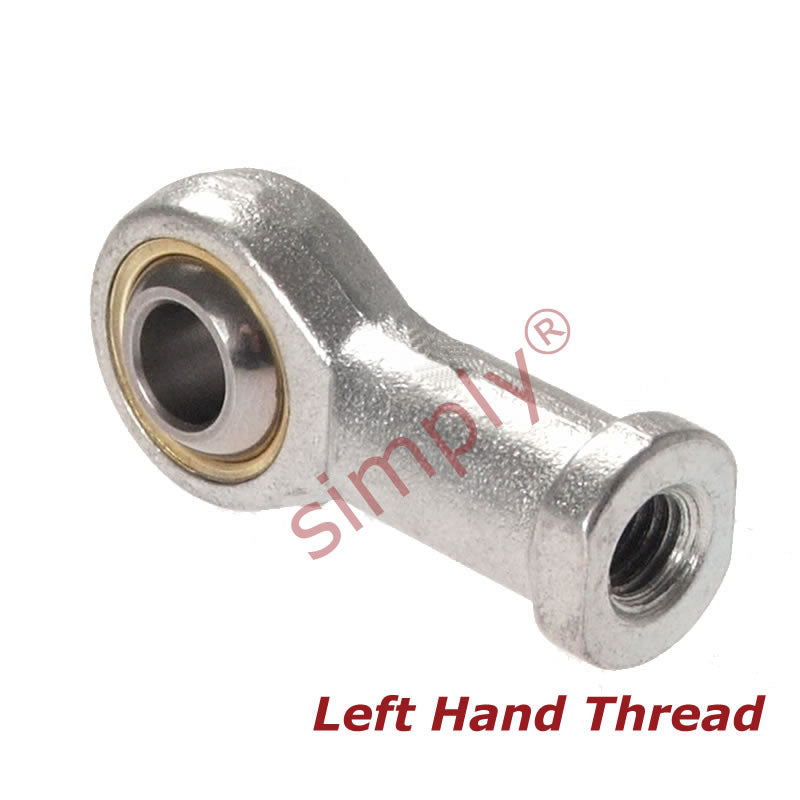

• Branded FBL-10 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 5/8 UNF Thread - Allow 7-10 Days
1 1

SKU: FBL-10-MB

Branded FBL-10 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 5/8 UNF Thread - Allow 7-10 Days

Branded FBL-10 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 5/8 UNF Thread - Allow 7-10 Days
$25.66 ex VAT
$25.66 ex VAT
Sale Sold out

In stock

Price Break
10+ $17.19
19+ $16.22
29+ $16.03
39+ $15.84
49+ $15.64
74+ $15.45
99+ $14.48
199+ $14.29
249+ $14.10
499+ $13.90
999+ $13.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c
Benefits: Low friction, extended wear life
Brand / Quality:
Major Brand - High Quality
Thread Size:
5/8 UNF
Thread M / F:
Female
Thread Direction:
Left Hand
Material:
Bronze Lined
Technical
Bore size 5/8 inch
Thread 5/8 UNF
W 0.75 inch
H 0.562 inch
D 1.5 inch
L1 2.5 inch
L2 1.5 inch
O 0.811 inch
AF 0.875 inch
Static load 22500 N
