SKU: FBL-M03-MB

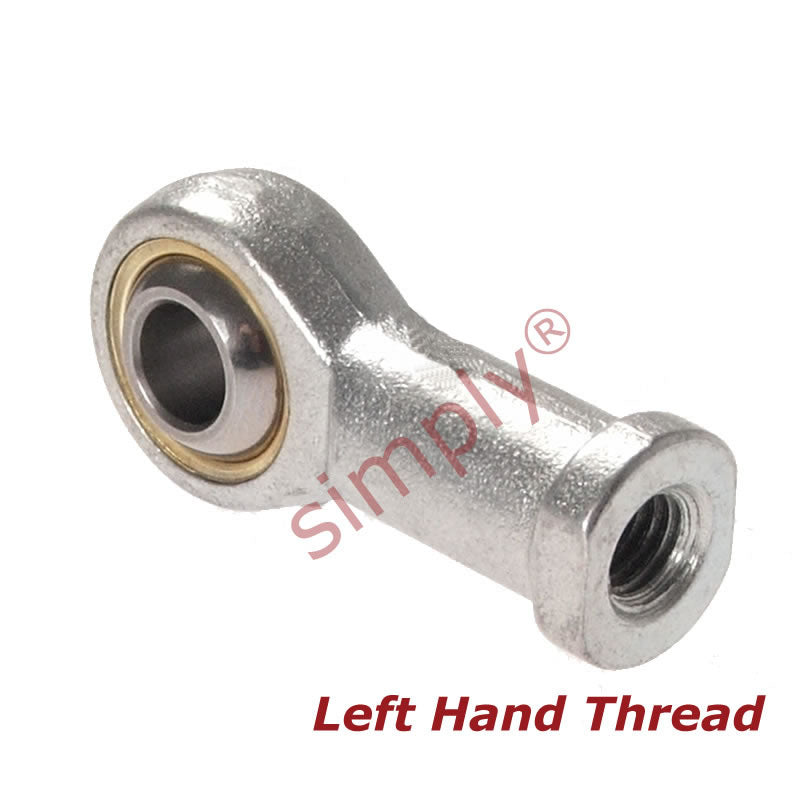

Branded FBL-M03 Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M3x0.5 Thread - Allow 7-10 Days

Name: Branded FBL-M03 Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M3x0.5 Thread - Allow 7-10 Days
Brand: Major Brand
SKU: FBL-M03-MB
Price: 10.76 USD
Availability: InStock

$10.76 ex VAT

Sale Sold out

Equivalent to: PHS3L

In stock

Price Break

10+ $7.21

19+ $6.80

29+ $6.72

39+ $6.64

49+ $6.56

74+ $6.48

99+ $6.07

199+ $5.99

249+ $5.91

499+ $5.83

999+ $5.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c
Benefits: Low friction, extended wear life

Brand / Quality:: Major Brand - High Quality
Thread Size:: M3x0.5
Thread M / F:: Female
Thread Direction:: Left Hand
Material:: Bronze Lined

Technical

Bore size	3mm
Thread	M3x0.5
W	6mm
H	4.5mm
D	12mm
L1	21mm
L2	10mm
O	5.2mm
AF	6.5mm
Static load	3648 N
