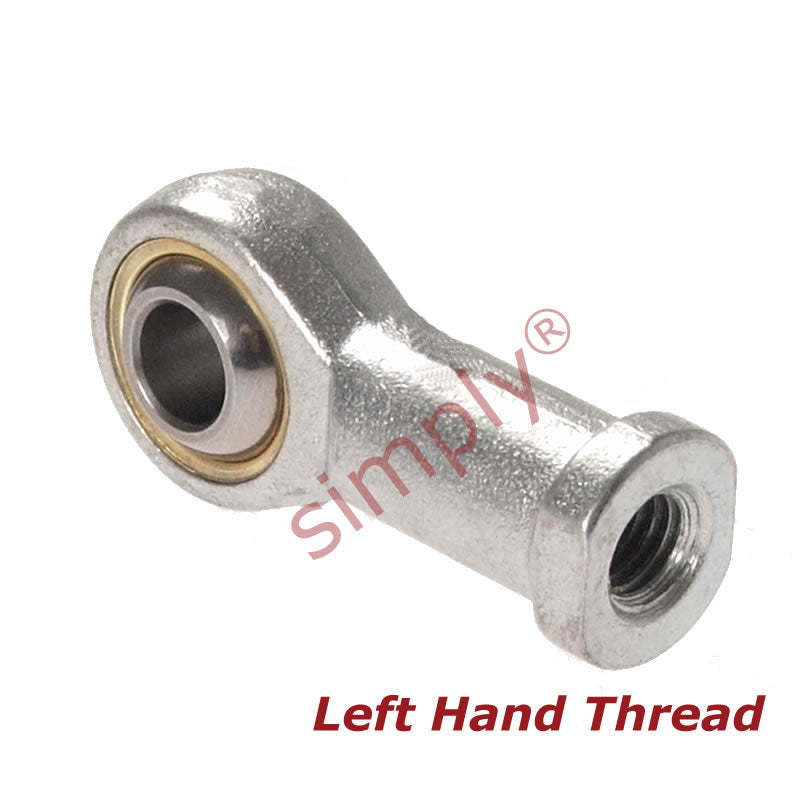

• Branded FBL-M04 Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M4x0.7 Thread - Allow 7-10 Days
1 1

SKU: FBL-M04-MB

Branded FBL-M04 Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M4x0.7 Thread - Allow 7-10 Days

Branded FBL-M04 Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M4x0.7 Thread - Allow 7-10 Days
$10.76 ex VAT
$10.76 ex VAT
Sale Sold out

Equivalent to: PHS4L

In stock

Price Break
10+ $7.21
19+ $6.80
29+ $6.72
39+ $6.64
49+ $6.56
74+ $6.48
99+ $6.07
199+ $5.99
249+ $5.91
499+ $5.83
999+ $5.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c
Benefits: Low friction, extended wear life
Brand / Quality:
Major Brand - High Quality
Thread Size:
M4x0.7
Thread M / F:
Female
Thread Direction:
Left Hand
Material:
Bronze Lined
Technical
Bore size 4mm
Thread M4x0.7
W 7mm
H 5mm
D 14mm
L1 24mm
L2 12mm
O 6.3mm
AF 8mm
Static load 4960 N
