SKU: FBL-M14S-DUN

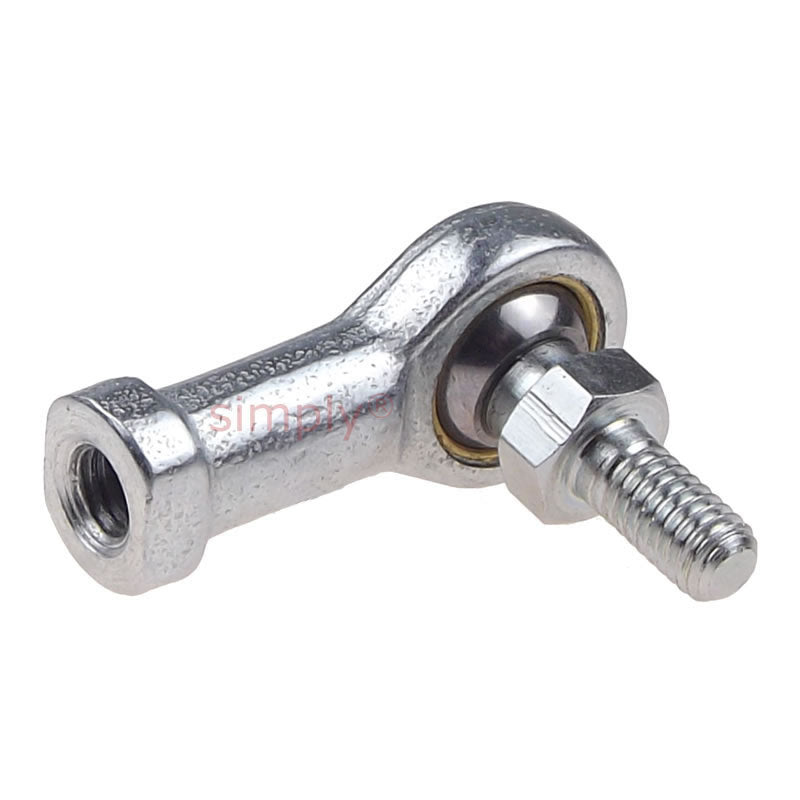

Dunlop FBL-M14S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M14x2 Thread - Allow 7-10 Days
Dunlop FBL-M14S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M14x2 Thread - Allow 7-10 Days
Regular price
$32.20
ex VAT
Regular price
Sale price
$32.20
ex VAT
Equivalent to: PHS14L+STUD
In stock
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M14x2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M14 |
|---|---|
| Thread | M14x2 |
| A | 28mm |
| B | 28mm |
| C | 25mm |
| K | 22mm |
| Static load | 7200 N |
