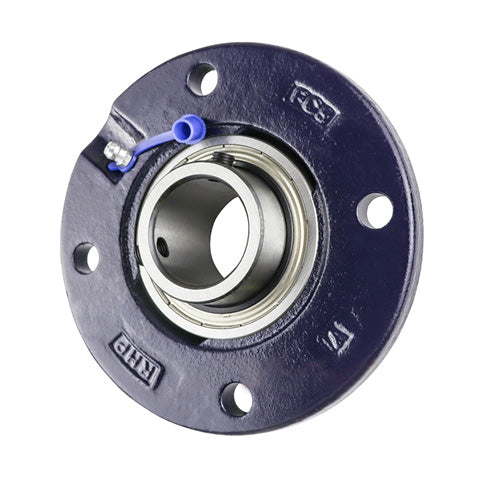

• RHP FC1.15/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-15/16 Insert
1 1

SKU: FC1.15/16-RHP

RHP FC1.15/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-15/16 Insert

RHP FC1.15/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-15/16 Insert
$158.74 ex VAT
$158.74 ex VAT
Sale Sold out

In stock

Price Break
10+ $106.33
20+ $100.36
30+ $99.16
40+ $97.97
50+ $96.77
75+ $95.58
100+ $89.61
200+ $88.41
250+ $87.22
500+ $86.02
1000+ $83.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Style:
FC
Pitch Circle Diameter:
135.001mm = 5.315 inch
Technical
Bore 1-15/16 inch
L 6.496 inch
H 4.331 inch
J 5.315 inch
G 0.5 inch
A 0.984 inch
A1 1.241 inch
A5 0.512 inch
B 2.031 inch
s 0.752 inch
d1 2.449 inch
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1050-1-15/16G+insonly">1050-1-15/16G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
