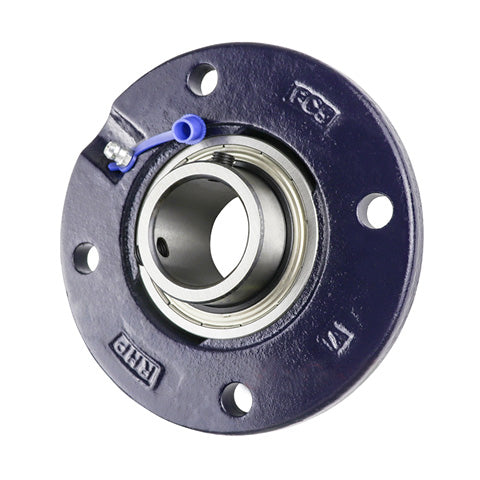

• RHP FC1.3/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
1 1

SKU: FC1.3/4-RHP

RHP FC1.3/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert

RHP FC1.3/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
$120.15 ex VAT
$120.15 ex VAT
Sale Sold out

In stock

Price Break
10+ $80.48
20+ $75.96
30+ $75.06
40+ $74.15
50+ $73.25
75+ $72.34
100+ $67.82
200+ $66.92
250+ $66.01
500+ $65.11
1000+ $63.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Style:
FC
Pitch Circle Diameter:
129.997mm = 5.118 inch
Technical
Bore 1-3/4 inch
L 6.102 inch
H 4.134 inch
J 5.118 inch
G 0.5 inch
A 0.984 inch
A1 1.109 inch
A5 0.472 inch
B 1.938 inch
s 0.752 inch
d1 2.256 inch
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3400 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1050-1-3/4G+insonly">1050-1-3/4G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
