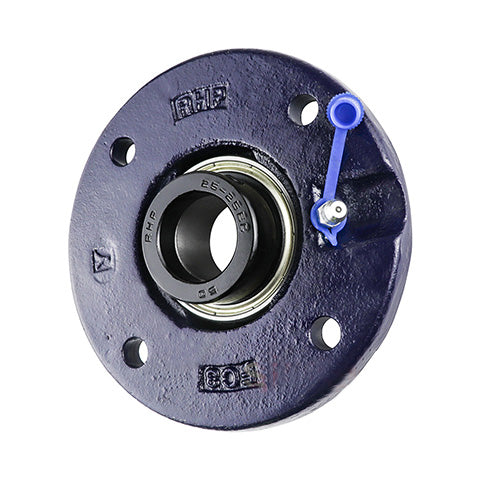

• RHP FC1.3/4EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
1 1

SKU: FC1.3/4EC-RHP

RHP FC1.3/4EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert

RHP FC1.3/4EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
$126.15 ex VAT
$126.15 ex VAT
Sale Sold out

In stock

Price Break
10+ $84.50
20+ $79.75
30+ $78.80
40+ $77.85
50+ $76.90
75+ $75.95
100+ $71.21
200+ $70.26
250+ $69.31
500+ $68.36
1000+ $66.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Style:
FC
Pitch Circle Diameter:
129.997mm = 5.118 inch
Technical
Bore 1-3/4 inch
L 6.102 inch
H 4.134 inch
J 5.118 inch
G 0.5 inch
A 0.984 inch
A2 1.204 inch
A5 0.472 inch
B2 1.718 inch
s2 0.845 inch
d2 2.5 inch
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3400 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1250-1-3/4ECG+insonly">1250-1-3/4ECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
