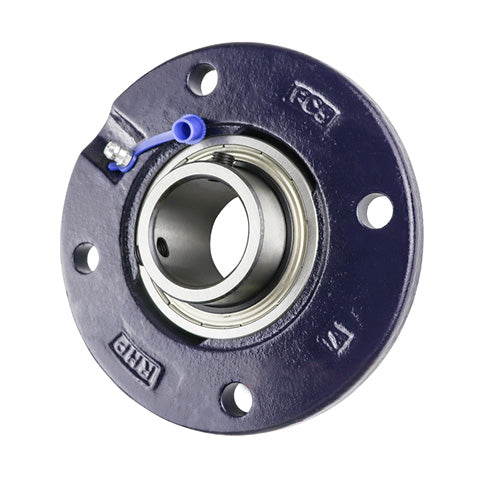

• RHP FC1.7/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert
1 1

SKU: FC1.7/16-RHP

RHP FC1.7/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert

RHP FC1.7/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert
$86.66 ex VAT
$86.66 ex VAT
Sale Sold out

In stock

Price Break
10+ $58.04
20+ $54.78
30+ $54.13
40+ $53.48
50+ $52.83
75+ $52.18
100+ $48.91
200+ $48.26
250+ $47.61
500+ $46.96
1000+ $45.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Style:
FC
Pitch Circle Diameter:
110.01mm = 4.331 inch
Technical
Bore 1-7/16 inch
L 5.315 inch
H 3.543 inch
J 4.331 inch
G 0.375 inch
A 0.807 inch
A1 0.961 inch
A5 0.394 inch
B 1.688 inch
s 0.69 inch
d1 1.838 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.5 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-7/16G+insonly">1035-1-7/16G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
