SKU: FC1.7/16DEC-RHP

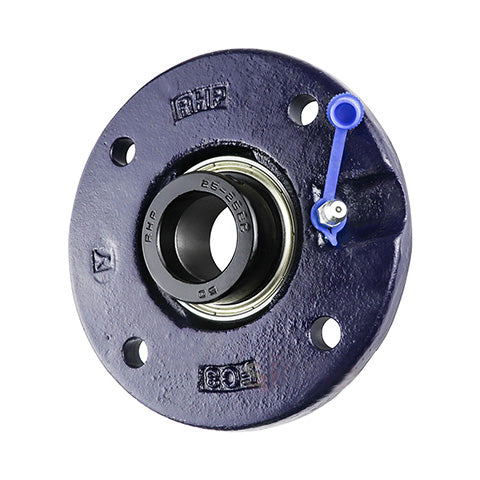

RHP FC1.7/16DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert

RHP FC1.7/16DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert
Regular price $99.63 ex VAT
Regular price Sale price $99.63 ex VAT
Sale Sold out

In stock

Price Break
10+ $66.74
20+ $62.99
30+ $62.24
40+ $61.49
50+ $60.74
75+ $59.99
100+ $56.24
200+ $55.49
250+ $54.74
500+ $53.99
1000+ $52.49
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-7/16 inch
L 5.315 inch
H 3.543 inch
J 4.331 inch
G 0.375 inch
A 0.807 inch
A3 1.232 inch
A5 0.394 inch
B3 2.015 inch
s2 0.744 inch
d2 2.188 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.5 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-7/16DECG+insonly">1035-1-7/16DECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
