SKU: FC1.7/8-RHP

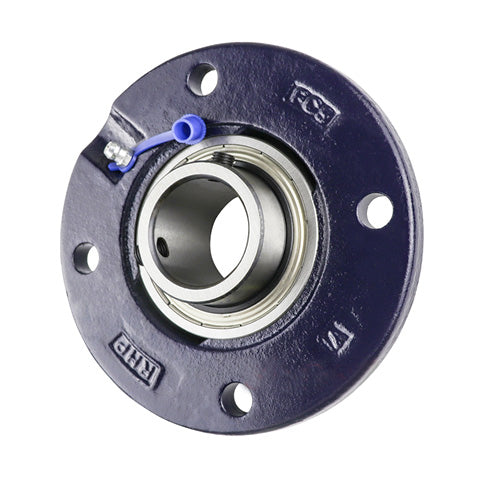

RHP FC1.7/8-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/8 inch Insert
RHP FC1.7/8-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/8 inch Insert
Out of stock
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Style:
- FC
- Pitch Circle Diameter:
- 135.001mm = 5.315 inch
Technical
Technical
| Bore | 1-7/8 inch |
|---|---|
| L | 6.496 inch |
| H | 4.331 inch |
| J | 5.315 inch |
| G | 0.5 inch |
| A | 0.984 inch |
| A1 | 1.241 inch |
| A5 | 0.512 inch |
| B | 2.031 inch |
| s | 0.752 inch |
| d1 | 2.449 inch |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-1-7/8G+insonly">1050-1-7/8G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
