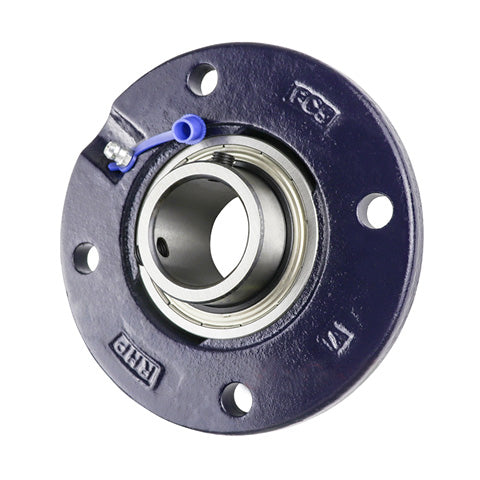

• RHP FC1-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1 inch Insert
1 1

SKU: FC1-RHP

RHP FC1-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1 inch Insert

RHP FC1-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1 inch Insert
$63.58 ex VAT
$63.58 ex VAT
Sale Sold out

In stock

Price Break
10+ $42.58
20+ $40.19
30+ $39.71
40+ $39.24
50+ $38.76
75+ $38.28
100+ $35.89
200+ $35.41
250+ $34.93
500+ $34.45
1000+ $33.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Style:
FC
Pitch Circle Diameter:
89.99mm = 3.543 inch
Technical
Bore 1 inch
L 4.528 inch
H 2.756 inch
J 3.543 inch
G 0.3125 inch
A 0.748 inch
A1 0.683 inch
A5 0.354 inch
B 1.343 inch
s 0.564 inch
d1 1.339 inch
Dynamic load 14000 N
Static load 7880 N
Rec max speed 6250 rpm
Weight 0.9 kg
Insert <a href="advanced_search_result.php?keywords=1025-1G+insonly">1025-1G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
