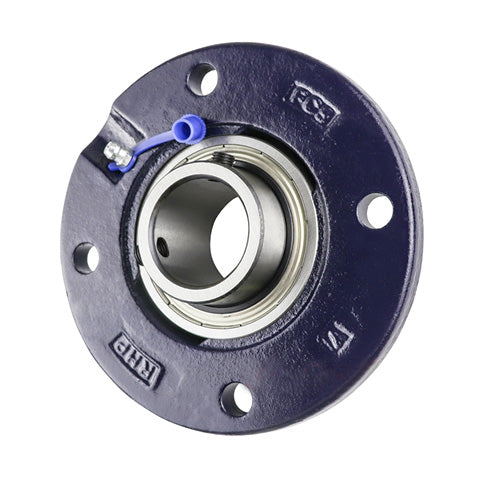

• RHP FC2.7/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2-7/16 inch Insert
1 1

SKU: FC2.7/16-RHP

RHP FC2.7/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2-7/16 inch Insert

RHP FC2.7/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2-7/16 inch Insert
$178.15 ex VAT
$178.15 ex VAT
Sale Sold out

In stock

Price Break
10+ $119.33
20+ $112.63
30+ $111.29
40+ $109.95
50+ $108.60
75+ $107.26
100+ $100.56
200+ $99.22
250+ $97.88
500+ $96.54
1000+ $93.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
61.91mm = 2.437 (2-7/16) inch
Style:
FC
Pitch Circle Diameter:
159.99mm = 6.299 inch
Technical
Bore 2-7/16 inch
L 7.677 inch
H 5.315 inch
J 6.299 inch
G 0.625 inch
A 1.142 inch
A1 1.522 inch
A5 0.63 inch
B 2.562 inch
s 1.002 inch
d1 2.966 inch
Dynamic load 48000 N
Static load 33000 N
Rec max speed 2800 rpm
Weight 4.7 kg
Insert <a href="advanced_search_result.php?keywords=1060-2-7/16G+insonly">1060-2-7/16G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
