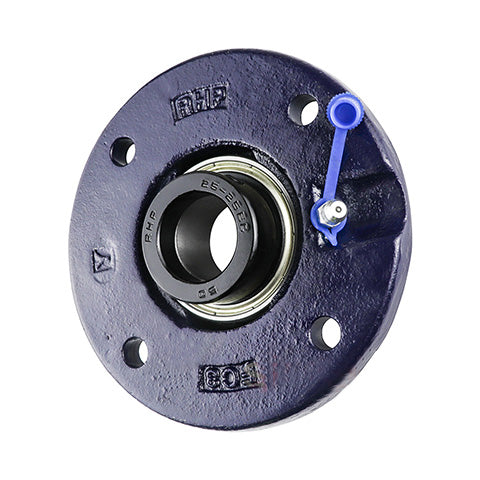

• RHP FC20DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
1 1

SKU: FC20DEC-RHP

RHP FC20DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert

RHP FC20DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
$59.84 ex VAT
$59.84 ex VAT
Sale Sold out

In stock

Price Break
10+ $40.09
20+ $37.83
30+ $37.38
40+ $36.93
50+ $36.48
75+ $36.03
100+ $33.78
200+ $33.33
250+ $32.88
500+ $32.43
1000+ $31.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Style:
FC
Pitch Circle Diameter:
78mm
Technical
Bore 20mm
L 100mm
H 62mm
J 78mm
G 8mm
A 17mm
A3 24.57mm
A5 8mm
B3 43.62mm
s2 17.12mm
d2 33.3mm
Dynamic load 12800 N
Static load 6650 N
Rec max speed 6700 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1020-20DECG+insonly">1020-20DECG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
