SKU: FC25EC-RHP

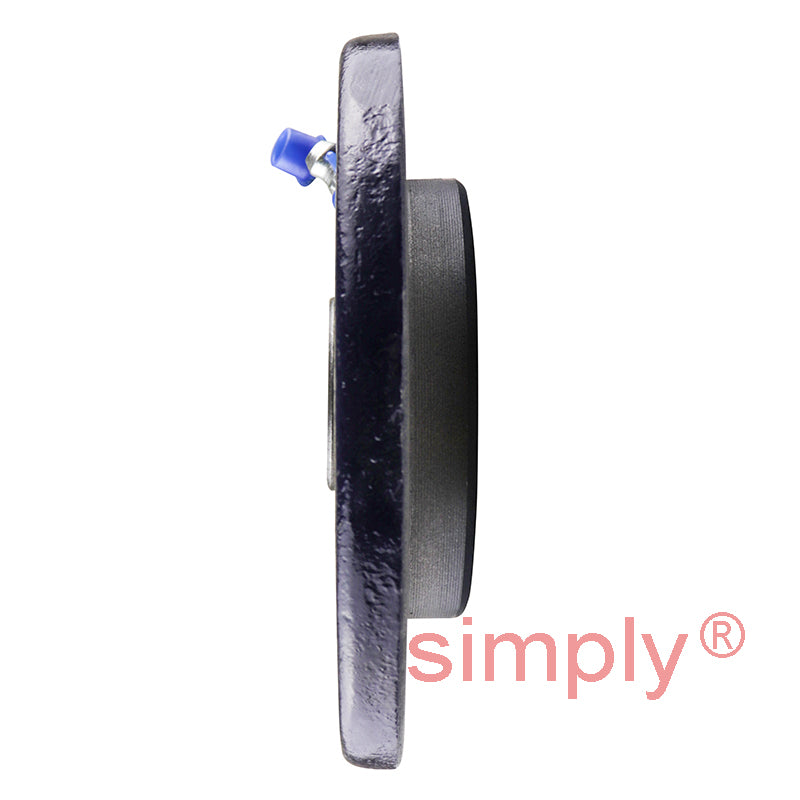

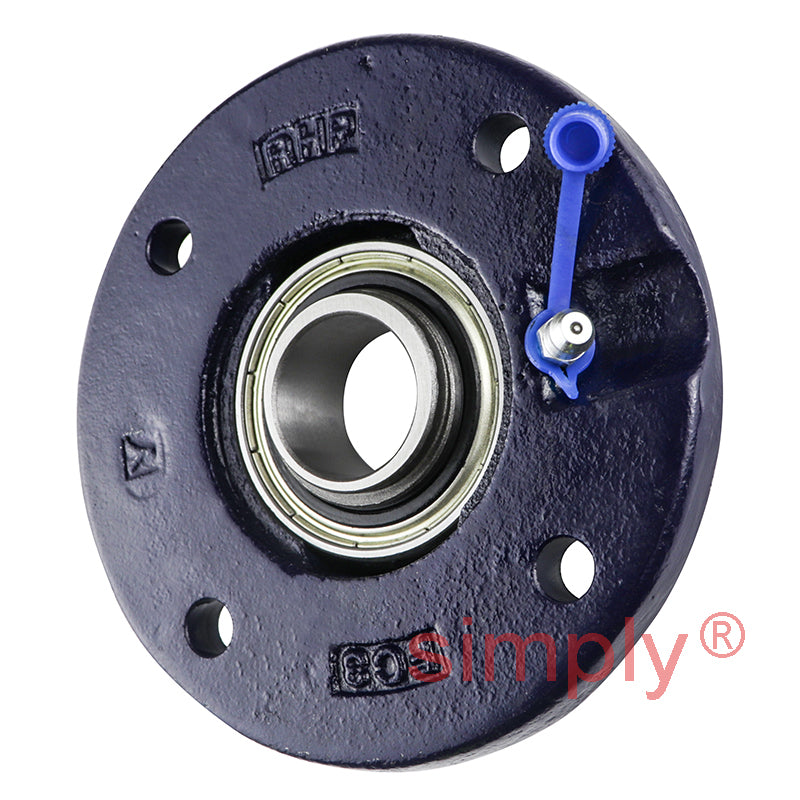

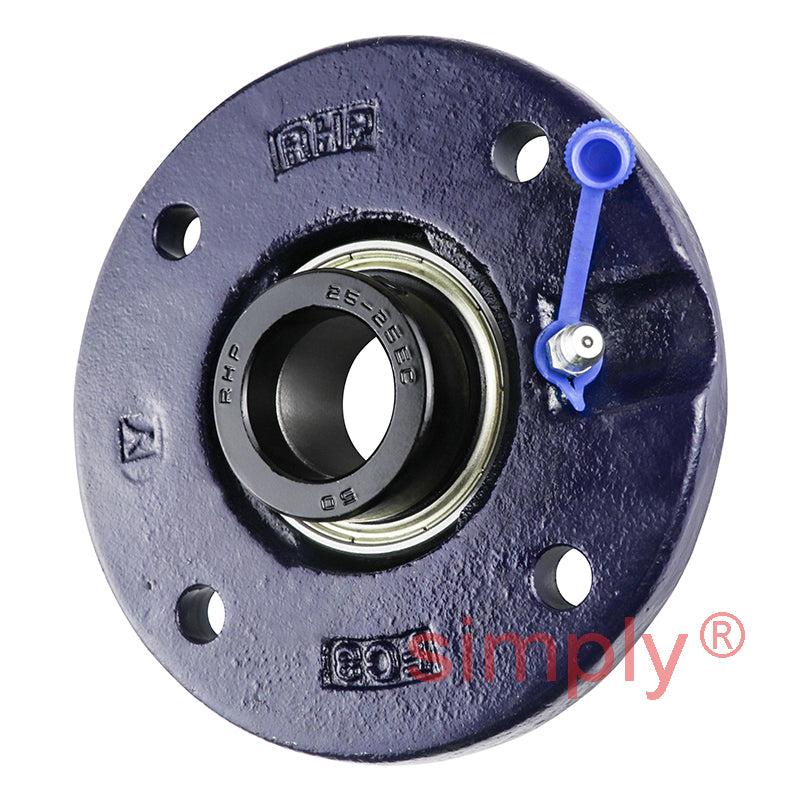

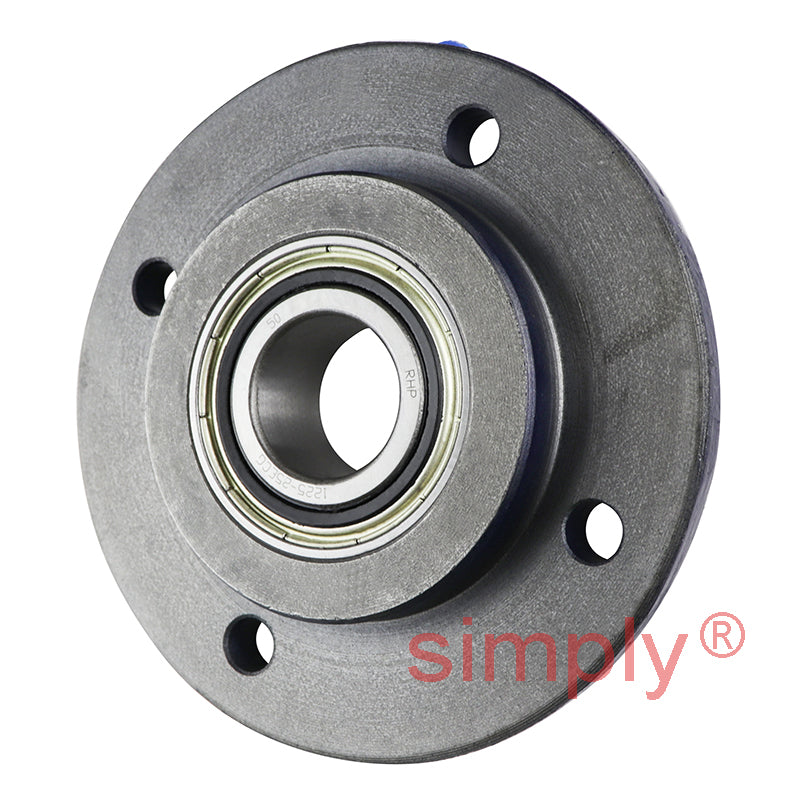

RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert

RHP FC25EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
$61.37 ex VAT
$61.37 ex VAT
Sale Sold out

In stock

Price Break
10+ $41.10
20+ $38.80
30+ $38.33
40+ $37.87
50+ $37.41
75+ $36.95
100+ $34.64
200+ $34.18
250+ $33.72
500+ $33.25
1000+ $32.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
FC
Pitch Circle Diameter:
90mm
Technical
Bore 25mm
L 115mm
H 70mm
J 90mm
G 8mm
A 19mm
A2 20.86mm
A5 9mm
B2 30.92mm
s2 17.49mm
d2 38.1mm
Dynamic load 14000 N
Static load 7880 N
Rec max speed 6250 rpm
Weight 0.9 kg
Insert <a href="advanced_search_result.php?keywords=1225-25ECG+insonly">1225-25ECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
