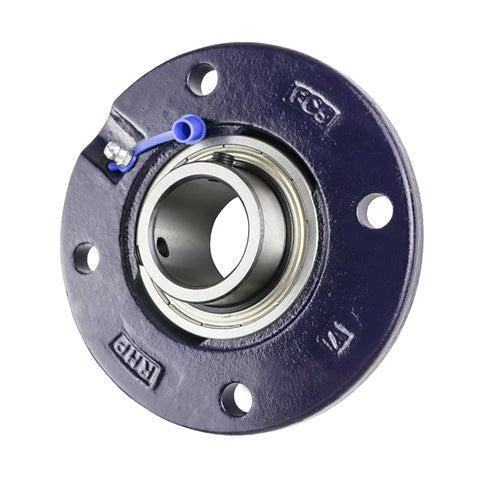

• RHP FC2R-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert
1 1

SKU: FC2R-RHP

RHP FC2R-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert

RHP FC2R-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert
$140.23 ex VAT
$140.23 ex VAT
Sale Sold out

In stock

Price Break
10+ $93.93
20+ $88.65
30+ $87.60
40+ $86.54
50+ $85.49
75+ $84.43
100+ $79.15
200+ $78.10
250+ $77.04
500+ $75.99
1000+ $73.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Style:
FC
Pitch Circle Diameter:
135.001mm = 5.315 inch
Technical
Bore 2 inch
L 6.496 inch
H 4.331 inch
J 5.315 inch
G 0.5 inch
A 0.984 inch
A1 1.241 inch
A5 0.512 inch
B 2.031 inch
s 0.752 inch
d1 2.449 inch
Dynamic load 35000 N
Static load 23200 N
Rec max speed 3400 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1050-2G+insonly">1050-2G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
