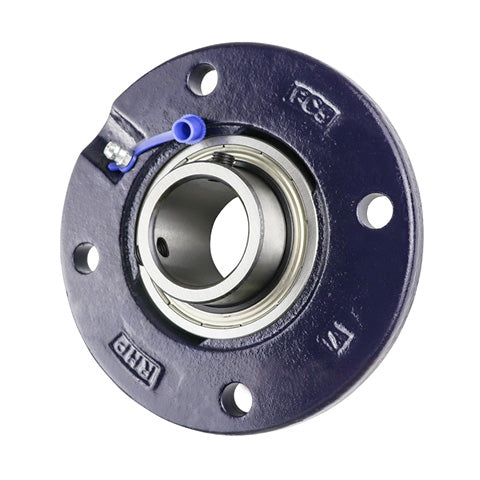

• RHP FC3/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 3/4 inch Insert
1 1

SKU: FC3/4-RHP

RHP FC3/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 3/4 inch Insert

RHP FC3/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 3/4 inch Insert
$53.41 ex VAT
$53.41 ex VAT
Sale Sold out

In stock

Price Break
10+ $35.78
20+ $33.77
30+ $33.36
40+ $32.96
50+ $32.56
75+ $32.16
100+ $30.15
200+ $29.75
250+ $29.34
500+ $28.94
1000+ $28.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
FC
Pitch Circle Diameter:
78.003mm = 3.071 inch
Technical
Bore 3/4 inch
L 3.937 inch
H 2.441 inch
J 3.071 inch
G 0.3125 inch
A 0.669 inch
A1 0.641 inch
A5 0.315 inch
B 1.219 inch
s 0.502 inch
d1 1.122 inch
Dynamic load 12800 N
Static load 6650 N
Rec max speed 6700 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1020-3/4G+insonly">1020-3/4G Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
