• RHP FC30A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
  • RHP FC30A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
  • RHP FC30A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
1 3

SKU: FC30A-RHP

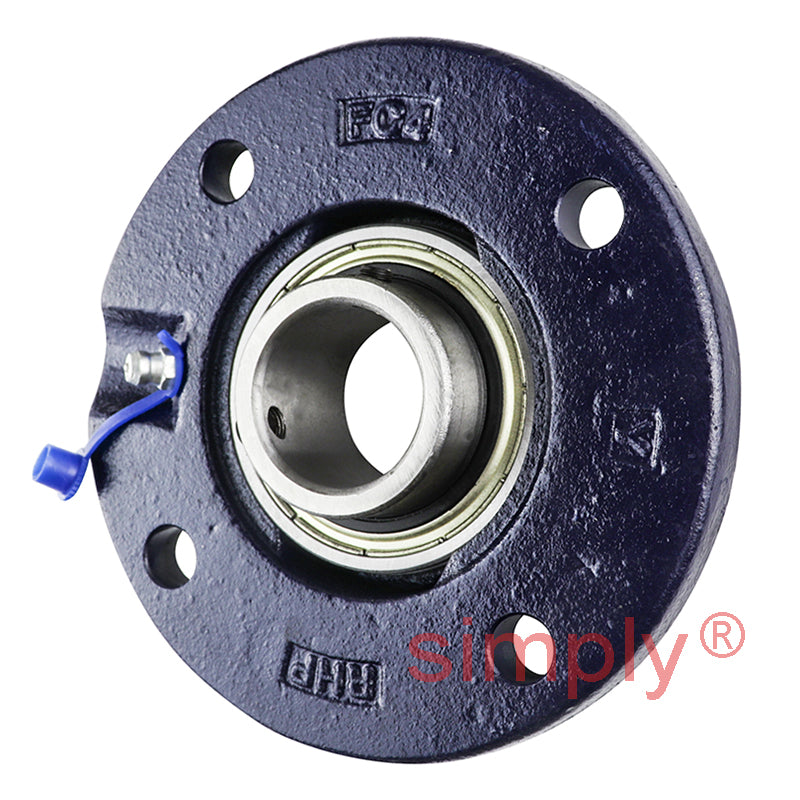

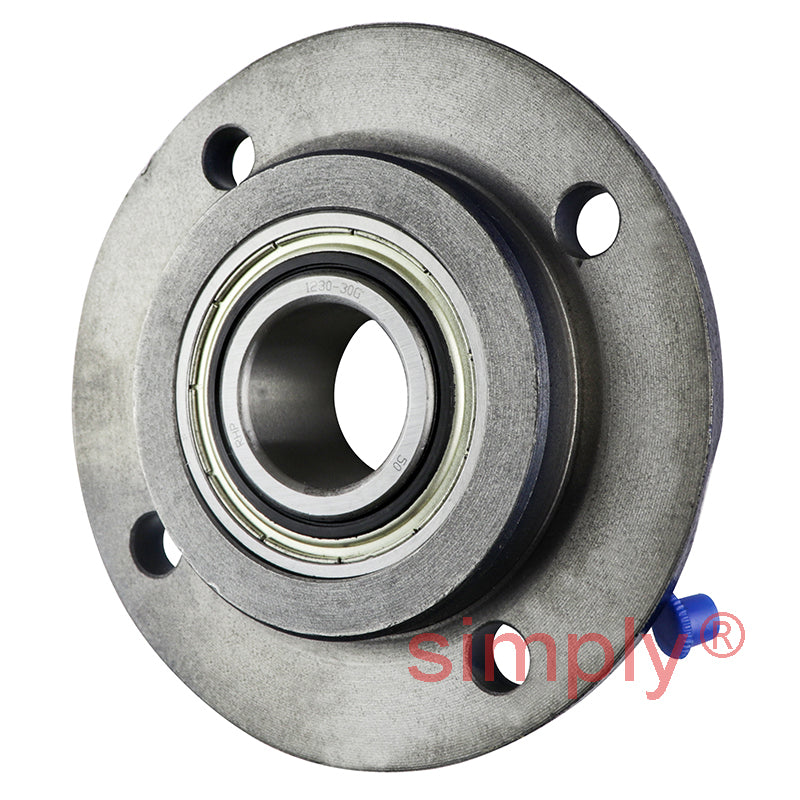

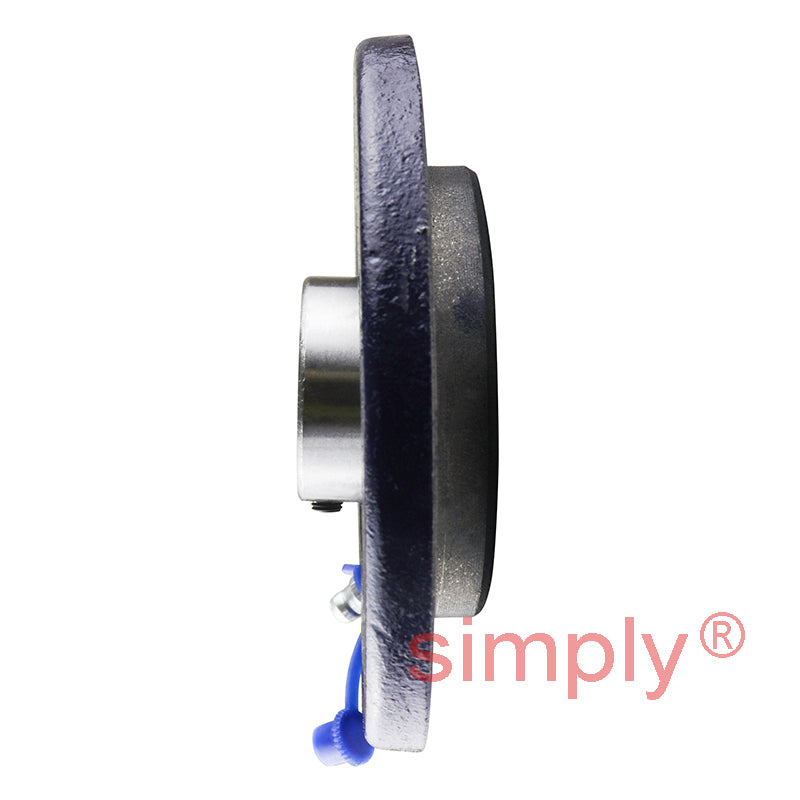

RHP FC30A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert

RHP FC30A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
$71.13 ex VAT
$71.13 ex VAT
Sale Sold out

In stock

Price Break
10+ $47.64
20+ $44.96
30+ $44.43
40+ $43.89
50+ $43.36
75+ $42.82
100+ $40.15
200+ $39.61
250+ $39.08
500+ $38.54
1000+ $37.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
FC
Pitch Circle Diameter:
100mm
Technical
Bore 30mm
L 125mm
H 80mm
J 100mm
G 10mm
A 20.5mm
A1 20.22mm
A5 9.5mm
B1 31.21mm
s1 9.04mm
d1 40mm
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1230-30AG+insonly">1230-30AG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
