SKU: FC30EC-RHP

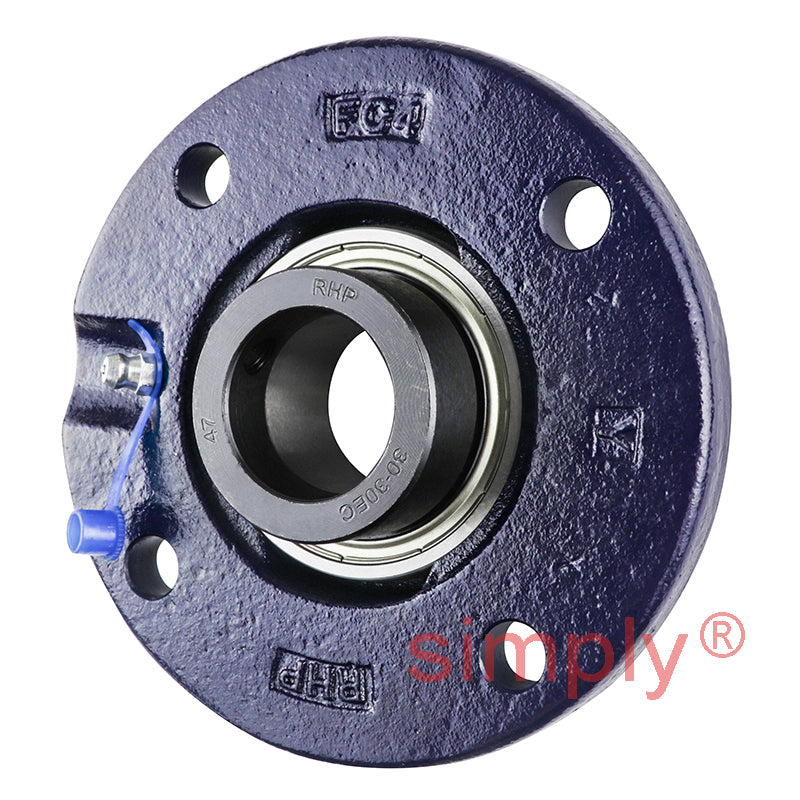

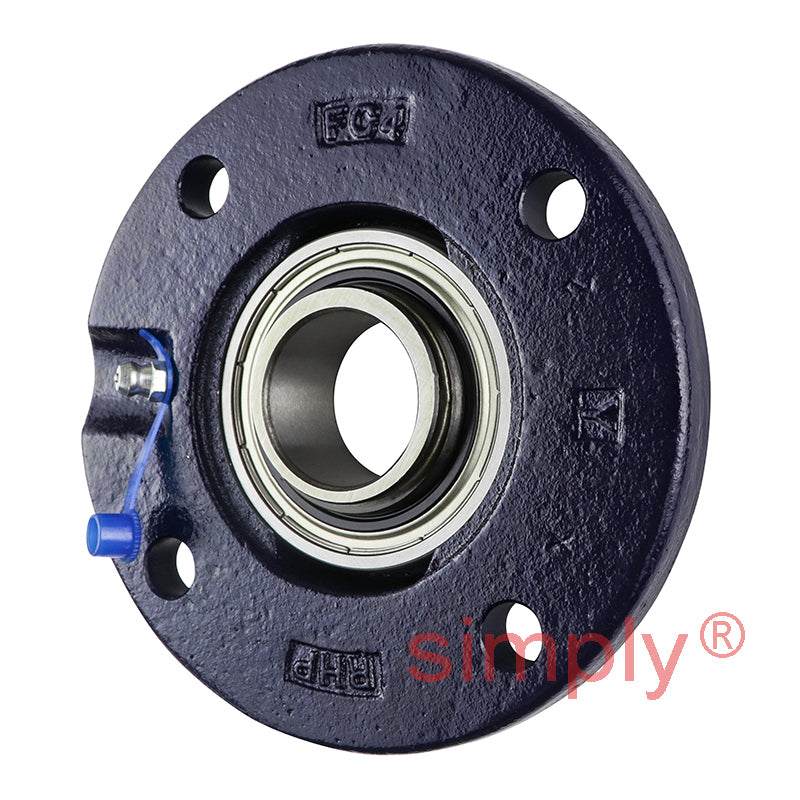

RHP FC30EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert

RHP FC30EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
$73.69 ex VAT
$73.69 ex VAT
Sale Sold out

In stock

Price Break
10+ $49.36
20+ $46.59
30+ $46.03
40+ $45.48
50+ $44.92
75+ $44.37
100+ $41.60
200+ $41.04
250+ $40.49
500+ $39.93
1000+ $38.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
FC
Pitch Circle Diameter:
100mm
Technical
Bore 30mm
L 125mm
H 80mm
J 100mm
G 10mm
A 20.5mm
A2 24.64mm
A5 9.5mm
B2 35.68mm
s2 18.32mm
d2 44.45mm
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1230-30ECG+insonly">1230-30ECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
