SKU: FC35A-RHP

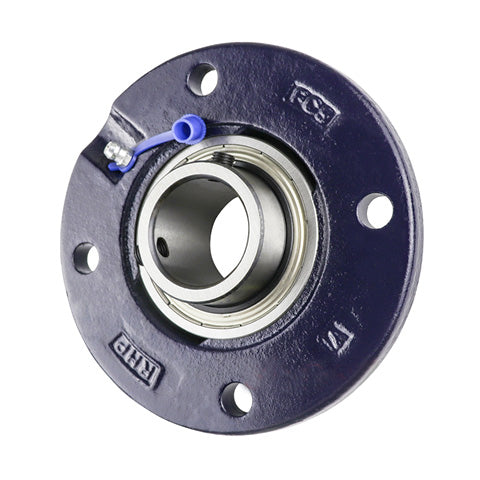

RHP FC35A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
Regular price
$81.70
ex VAT
Regular price
Sale price
$81.70
ex VAT
In stock
Price Break
10+
$54.73
20+
$51.65
30+
$51.04
40+
$50.42
50+
$49.81
75+
$49.19
100+
$46.12
200+
$45.50
250+
$44.89
500+
$44.27
1000+
$43.04
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- FC
- Pitch Circle Diameter:
- 110mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 135mm |
| H | 90mm |
| J | 110mm |
| G | 10mm |
| A | 20.5mm |
| A1 | 24.4mm |
| A5 | 10mm |
| B1 | 34.9mm |
| s1 | 9.55mm |
| d1 | 46.69mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-35AG+insonly">1235-35AG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
