• RHP FC35EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
1 1

SKU: FC35EC-RHP

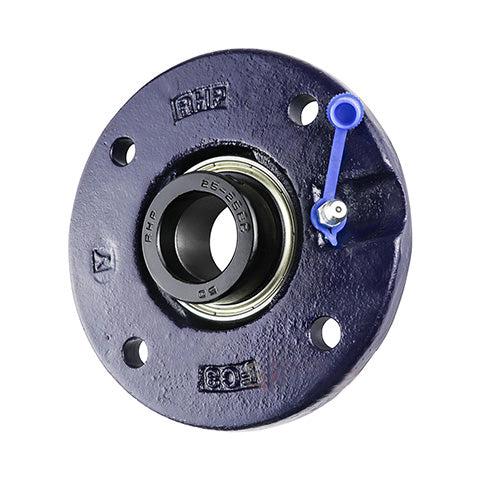

RHP FC35EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert

RHP FC35EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
$85.34 ex VAT
$85.34 ex VAT
Sale Sold out

In stock

Price Break
10+ $57.16
20+ $53.95
30+ $53.31
40+ $52.67
50+ $52.03
75+ $51.38
100+ $48.17
200+ $47.53
250+ $46.89
500+ $46.25
1000+ $44.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
FC
Pitch Circle Diameter:
110mm
Technical
Bore 35mm
L 135mm
H 90mm
J 110mm
G 10mm
A 20.5mm
A2 28.33mm
A5 10mm
B2 38.88mm
s2 18.89mm
d2 55.58mm
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.5 kg
Insert <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
