• RHP FC40-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
  • RHP FC40-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
  • RHP FC40-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
1 3

SKU: FC40-RHP

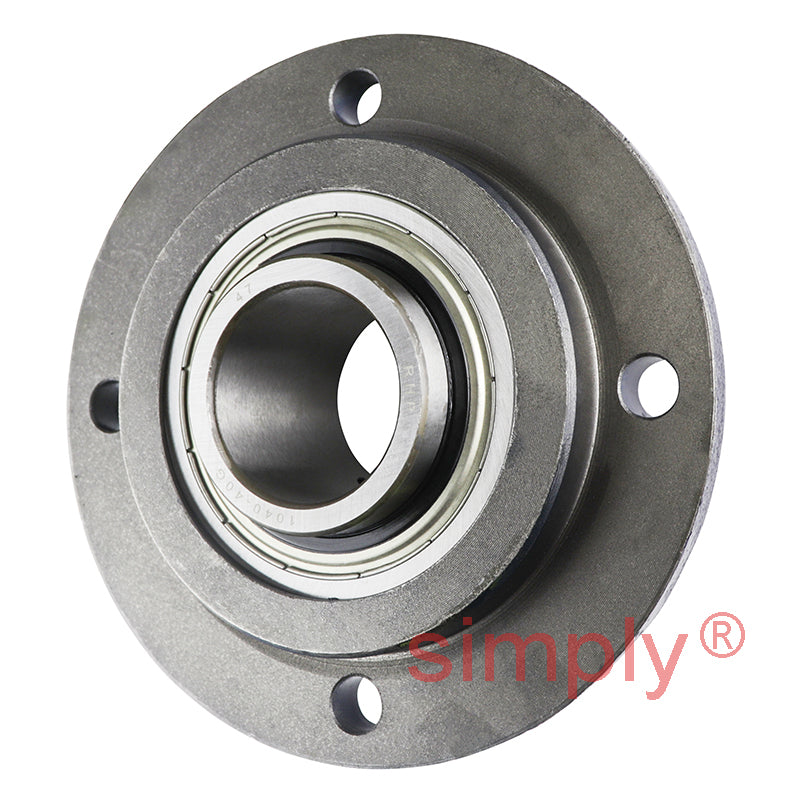

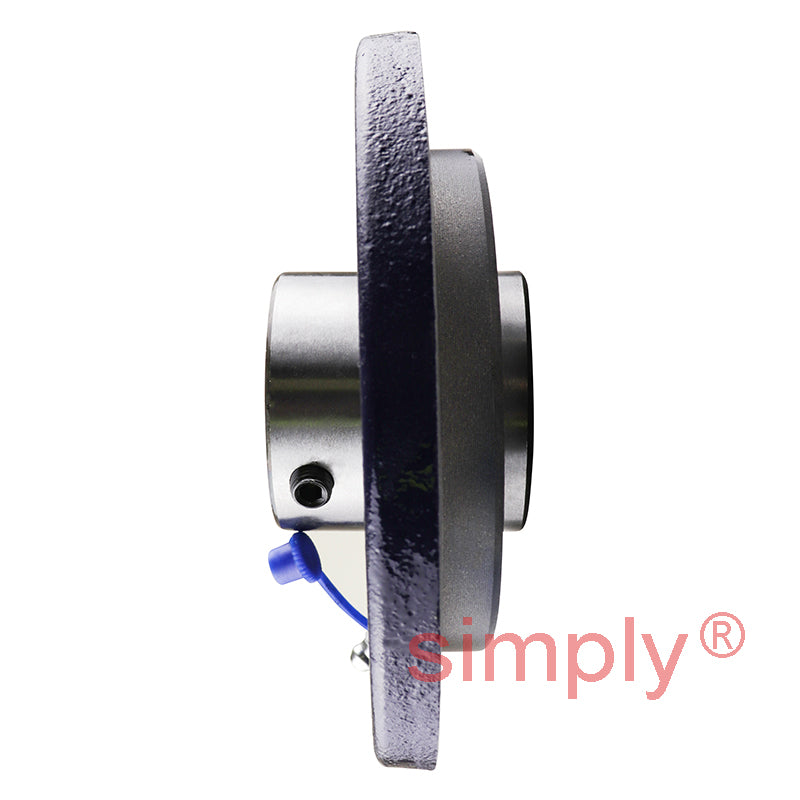

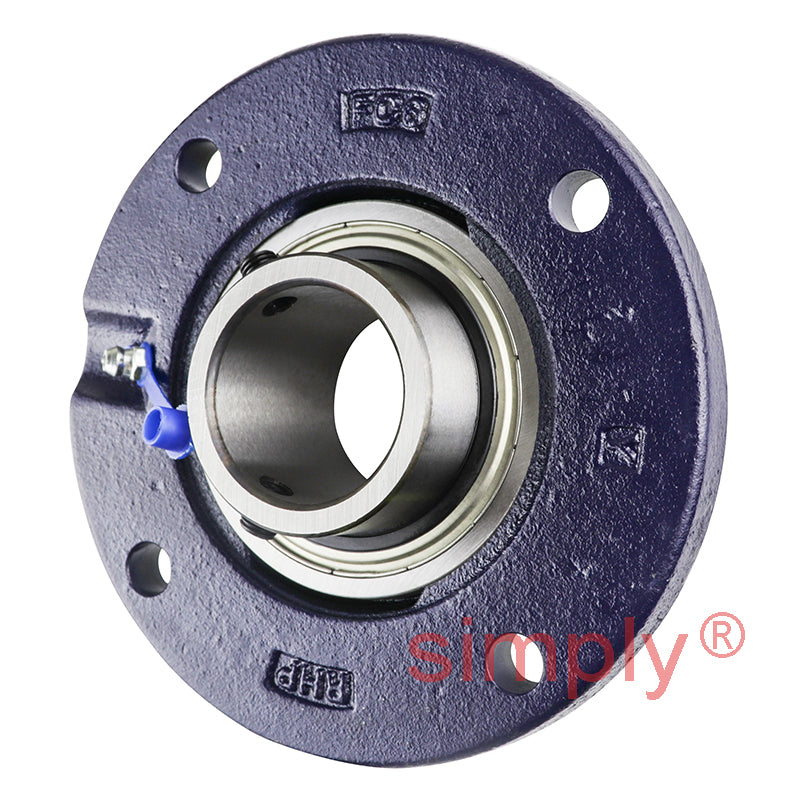

RHP FC40-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert

RHP FC40-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
$95.40 ex VAT
$95.40 ex VAT
Sale Sold out

In stock

Price Break
10+ $63.90
20+ $60.31
30+ $59.59
40+ $58.87
50+ $58.16
75+ $57.44
100+ $53.85
200+ $53.13
250+ $52.41
500+ $51.69
1000+ $50.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Style:
FC
Pitch Circle Diameter:
120mm
Technical
Bore 40mm
L 145mm
H 100mm
J 120mm
G 10mm
A 23mm
A1 29.18mm
A5 11.5mm
B 49.23mm
s 19.1mm
d1 52.7mm
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 1.8 kg
Insert <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
