SKU: FC40DEC-RHP

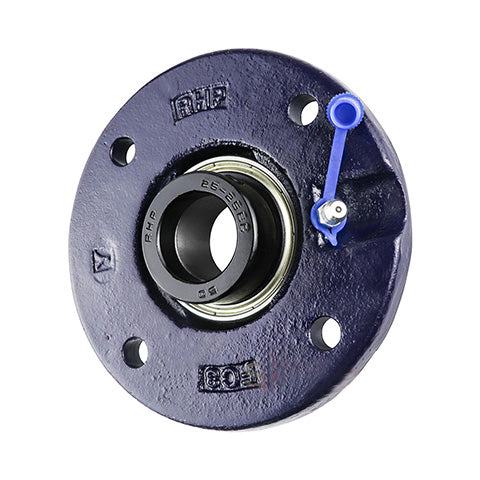

RHP FC40DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
RHP FC40DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
Regular price
$112.21
ex VAT
Regular price
Sale price
$112.21
ex VAT
In stock
Price Break
10+
$75.16
20+
$70.93
30+
$70.09
40+
$69.25
50+
$68.40
75+
$67.56
100+
$63.33
200+
$62.49
250+
$61.65
500+
$60.80
1000+
$59.11
Quantity
Couldn't load pickup availability
Share this product
Description
Description
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- FC
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 145mm |
| H | 100mm |
| J | 120mm |
| G | 10mm |
| A | 23mm |
| A3 | 33.88mm |
| A5 | 11.5mm |
| B3 | 56.34mm |
| s2 | 21.46mm |
| d2 | 60.3mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40DECG+insonly">1040-40DECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
