SKU: FC40EC-RHP

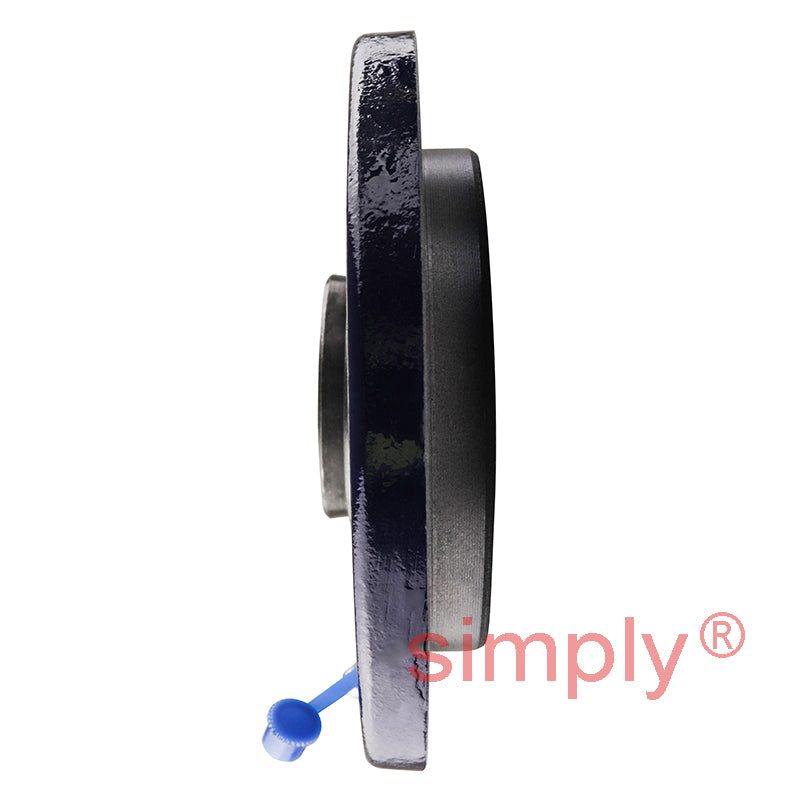

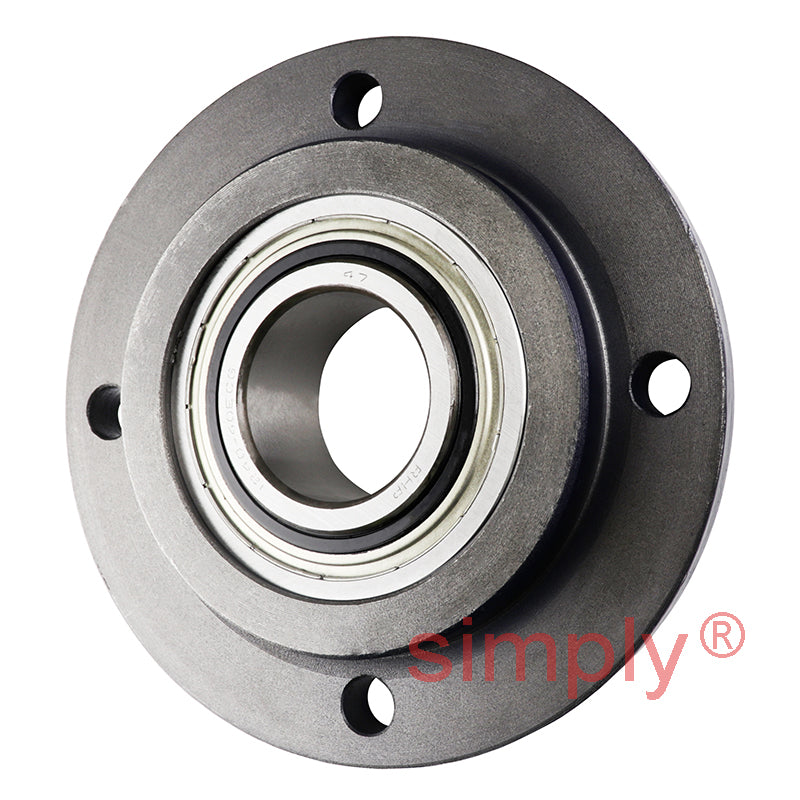

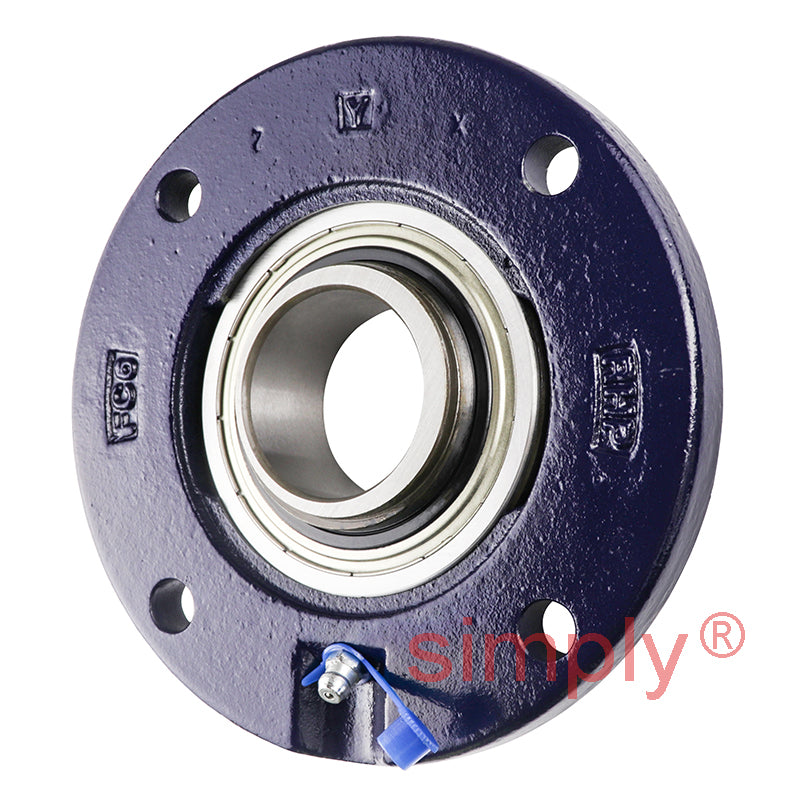

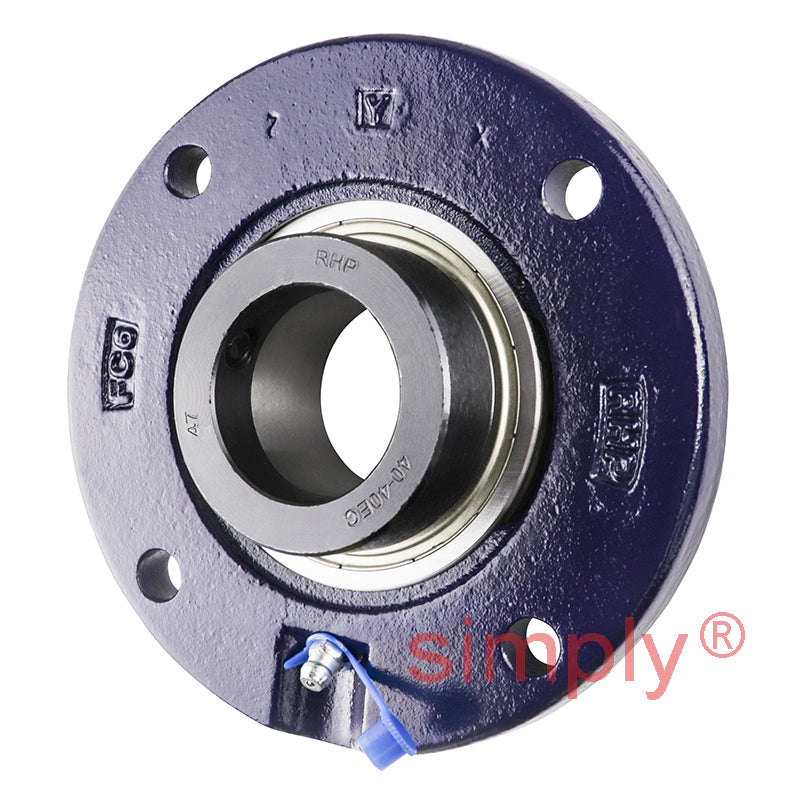

RHP FC40EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert

RHP FC40EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
$102.59 ex VAT
$102.59 ex VAT
Sale Sold out

In stock

Price Break
10+ $68.72
20+ $64.86
30+ $64.09
40+ $63.31
50+ $62.54
75+ $61.77
100+ $57.91
200+ $57.14
250+ $56.37
500+ $55.59
1000+ $54.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Style:
FC
Pitch Circle Diameter:
120mm
Technical
Bore 40mm
L 145mm
H 100mm
J 120mm
G 10mm
A 23mm
A2 31.59mm
A5 11.5mm
B2 43.64mm
s2 21.46mm
d2 60.3mm
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 1.8 kg

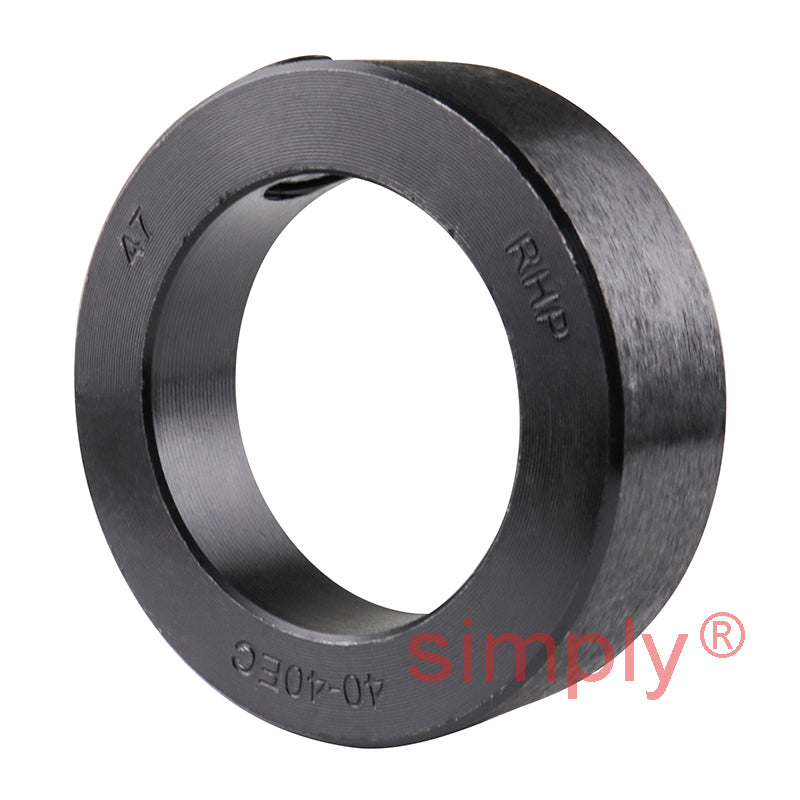

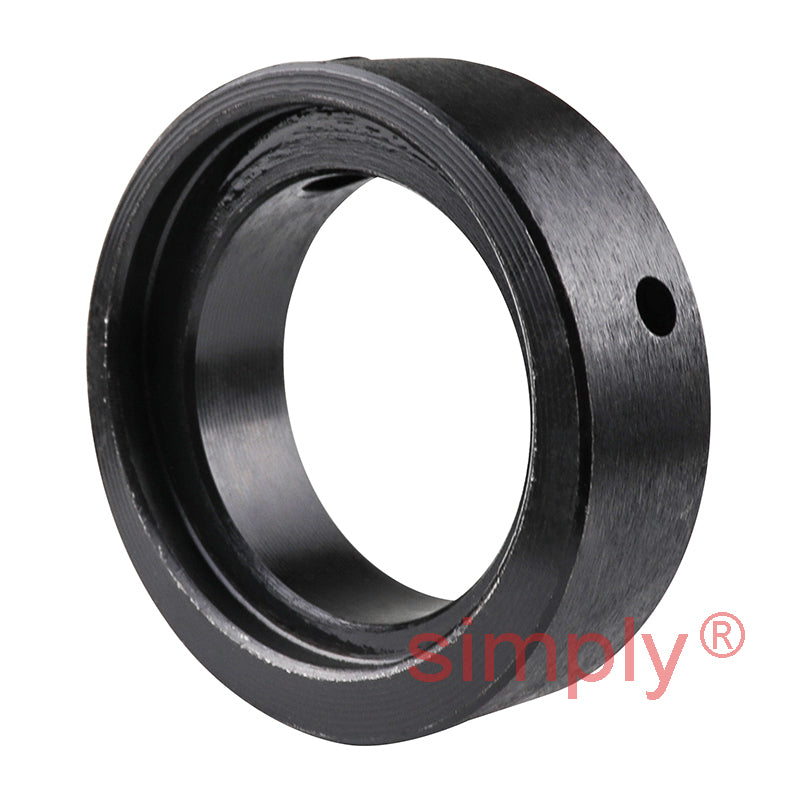

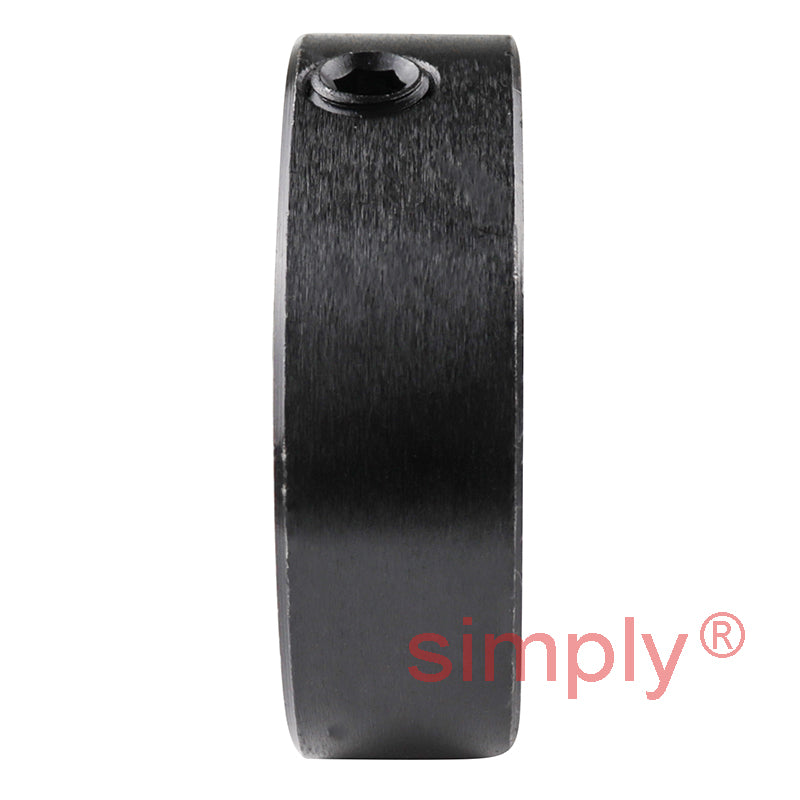

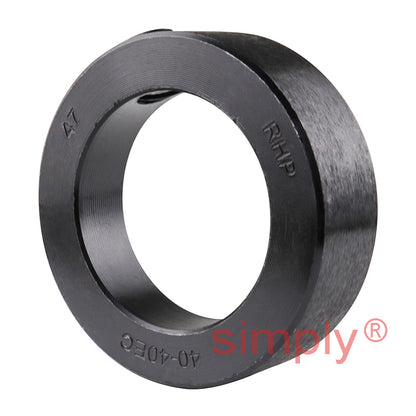

Insert <a href="advanced_search_result.php?keywords=1240-40ECG+insonly">1240-40ECG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
