• RHP FC45EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
1 1

SKU: FC45EC-RHP

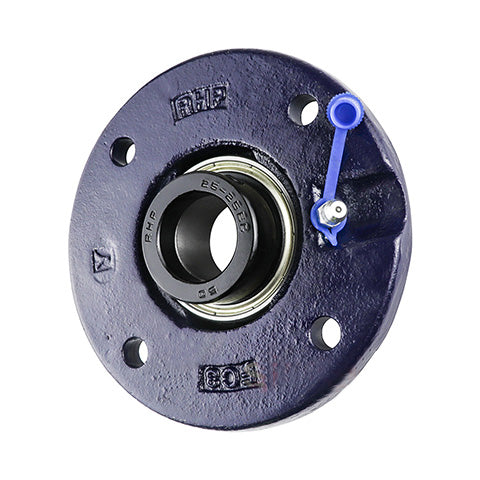

RHP FC45EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert

RHP FC45EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
$118.92 ex VAT
$118.92 ex VAT
Sale Sold out

In stock

Price Break
10+ $79.66
20+ $75.18
30+ $74.29
40+ $73.39
50+ $72.50
75+ $71.60
100+ $67.13
200+ $66.23
250+ $65.34
500+ $64.44
1000+ $62.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Style:
FC
Pitch Circle Diameter:
130mm
Technical
Bore 45mm
L 155mm
H 105mm
J 130mm
G 12mm
A 25mm
A2 30.59mm
A5 12mm
B2 43.64mm
s2 21.46mm
d2 63.5mm
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1245-45ECG+insonly">1245-45ECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
