SKU: FC50A-RHP

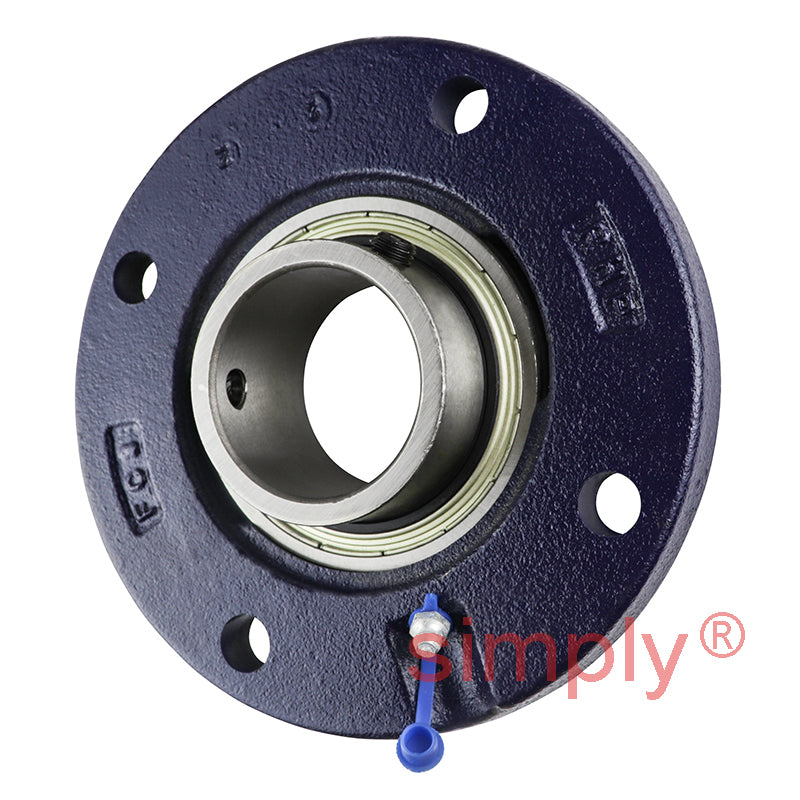

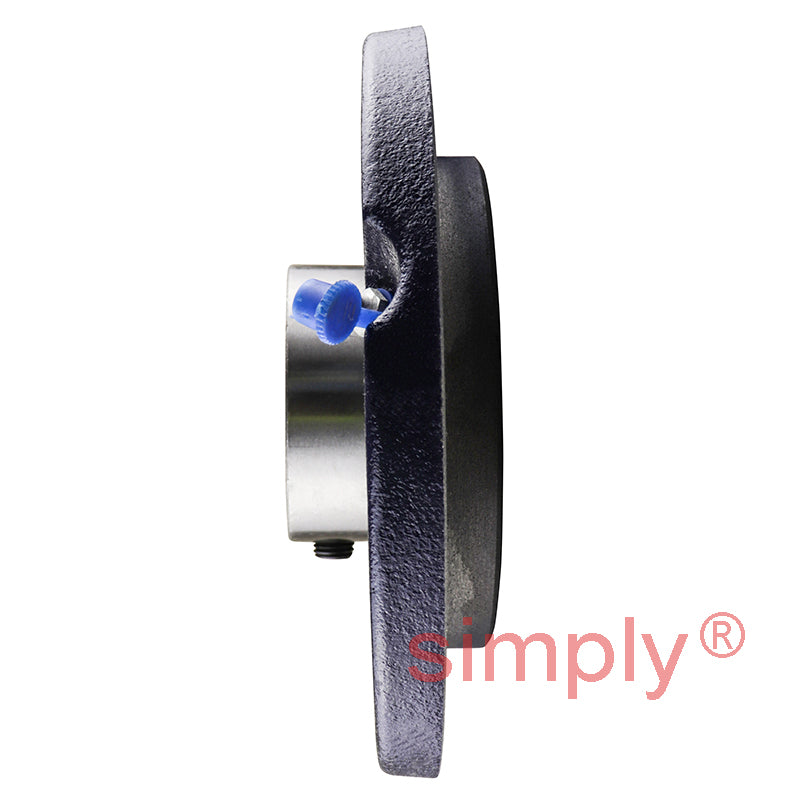

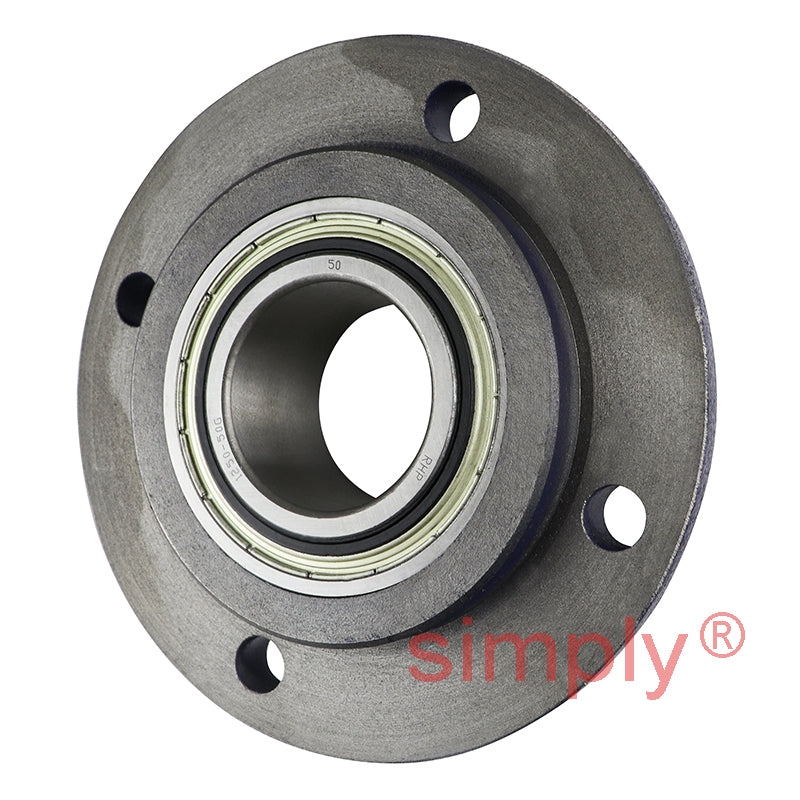

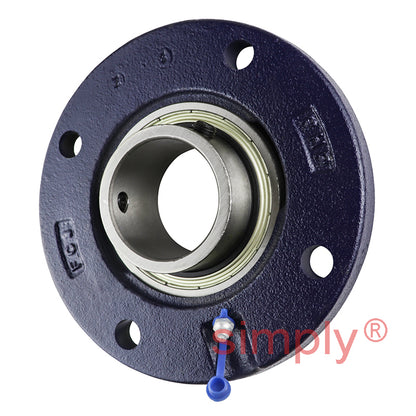

RHP FC50A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
Regular price
$118.49
ex VAT
Regular price
Sale price
$118.49
ex VAT
In stock
Price Break
10+
$79.37
20+
$74.91
30+
$74.02
40+
$73.13
50+
$72.24
75+
$71.35
100+
$66.89
200+
$66.00
250+
$65.10
500+
$64.21
1000+
$62.43
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- FC
- Pitch Circle Diameter:
- 135mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 165mm |
| H | 110mm |
| J | 135mm |
| G | 12mm |
| A | 25mm |
| A1 | 31.52mm |
| A5 | 13mm |
| B1 | 43.5mm |
| s1 | 11.04mm |
| d1 | 62.2mm |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1250-50AG+insonly">1250-50AG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
