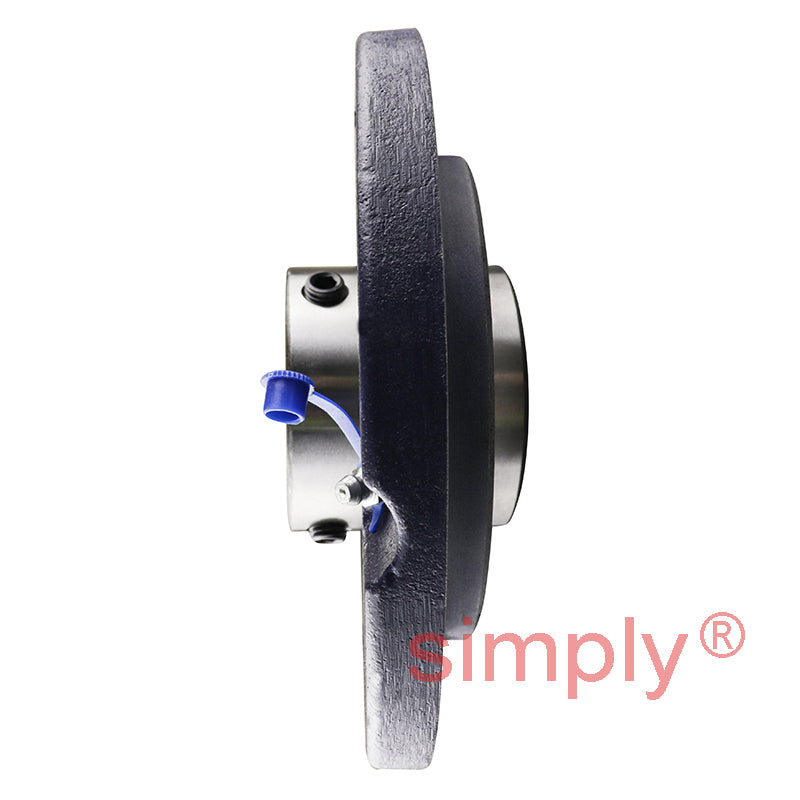

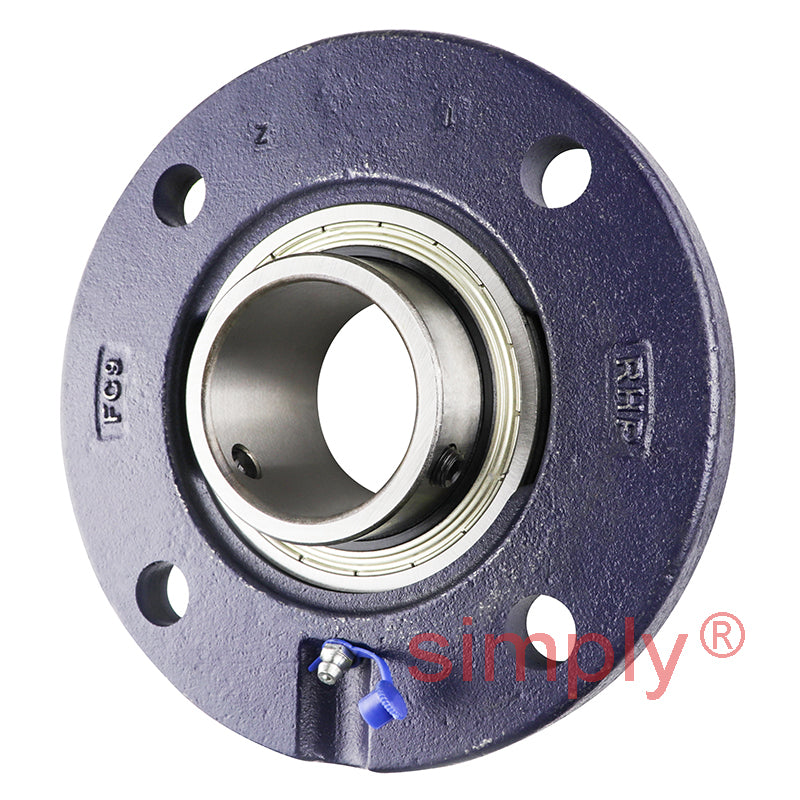

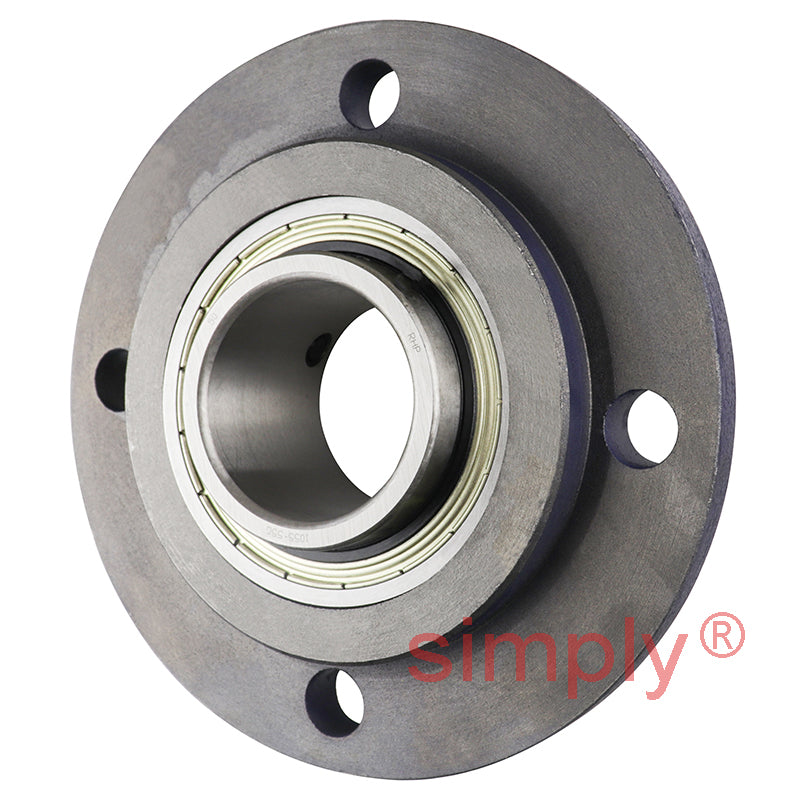

RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
Regular price
$149.65
ex VAT
Regular price
Sale price
$149.65
ex VAT
In stock
Price Break
10+
$100.24
20+
$94.61
30+
$93.48
40+
$92.36
50+
$91.23
75+
$90.10
100+
$84.47
200+
$83.35
250+
$82.22
500+
$81.09
1000+
$78.84
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- FC
- Pitch Circle Diameter:
- 150mm
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 185mm |
| H | 125mm |
| J | 150mm |
| G | 16mm |
| A | 27.5mm |
| A1 | 33.3mm |
| A5 | 15mm |
| B | 55.55mm |
| s | 22.28mm |
| d1 | 68.81mm |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-55G+insonly">1055-55G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
