SKU: FC55DEC-RHP

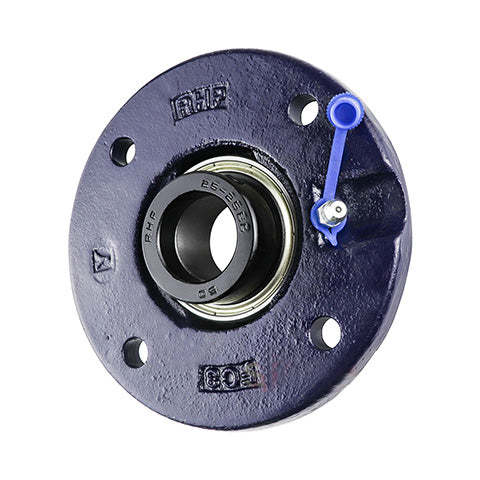

RHP FC55DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
RHP FC55DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
Out of stock
Share this product
Description
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- FC
- Pitch Circle Diameter:
- 150mm
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 185mm |
| H | 125mm |
| J | 150mm |
| G | 16mm |
| A | 27.5mm |
| A3 | 43.72mm |
| A5 | 15mm |
| B3 | 71.44mm |
| s2 | 27.82mm |
| d2 | 76.2mm |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-55DECG+insonly">1055-55DECG Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
