• INA FF3020 Needle Roller Flat Cage 20mm Width x 60mm Length
  • INA FF3020 Needle Roller Flat Cage 20mm Width x 60mm Length
  • INA FF3020 Needle Roller Flat Cage 20mm Width x 60mm Length
  • INA
1 4

SKU: FF3020

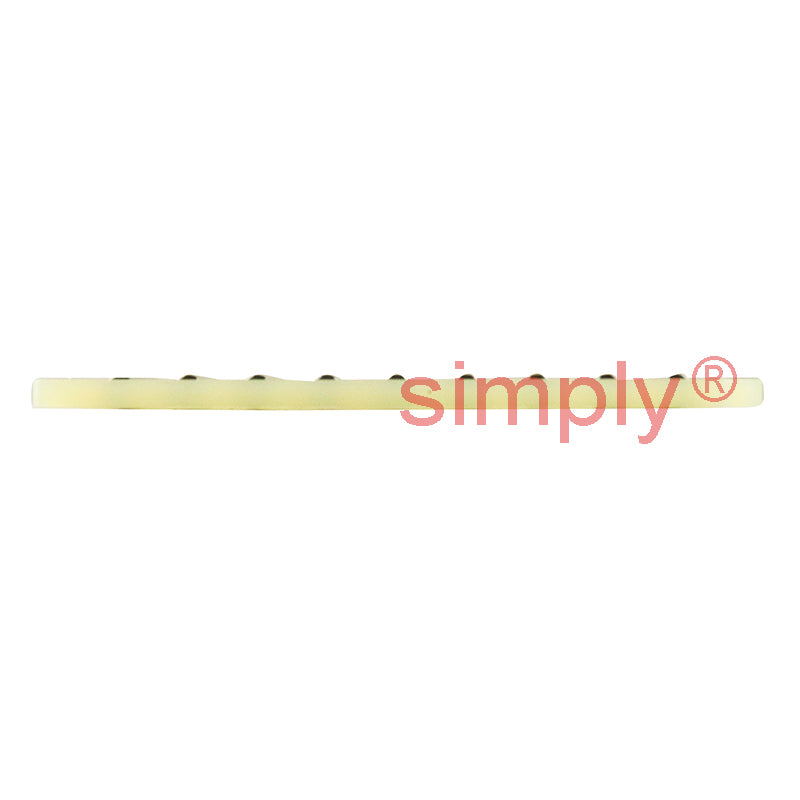

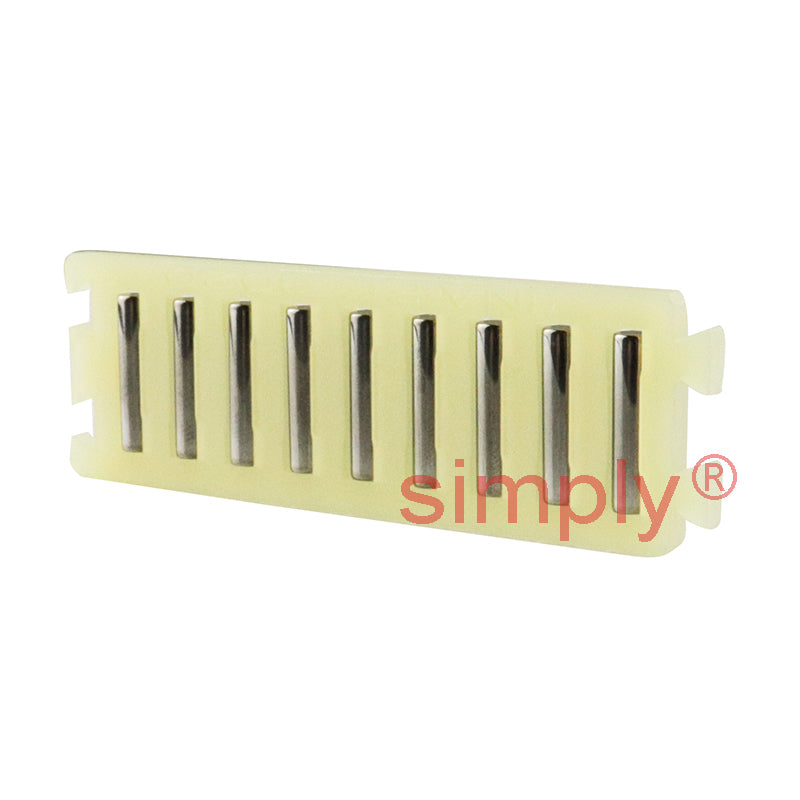

INA FF3020 Needle Roller Flat Cage 20mm Width x 60mm Length

INA FF3020 Needle Roller Flat Cage 20mm Width x 60mm Length
$5.67 ex VAT
$5.67 ex VAT
Sale Sold out

In stock

Price Break
10+ $3.80
19+ $3.59
29+ $3.54
39+ $3.50
49+ $3.46
74+ $3.42
99+ $3.20
199+ $3.16
249+ $3.12
499+ $3.07
999+ $2.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Needle Roller Flat Cages: Needle roller flat cages made up of numerous rolling elements. This ensures very high load capacities and precision. As the needle rollers are installed in a flat cage, needle roller flat cages use a small amount of space.
Brand / Quality:
INA - High Quality
Width:
20mm
Length:
60mm
Technical
--- Main Dimensions
l<sub>ke</sub> (Length) 60mm
D<sub>W</sub> (Rolling element diameter) 3mm
B (Width) 20mm
T (Cage Thickness) 2.5mm
C (Dynamic load capacity) 47.8 kN
C<sub>0</sub> (Static load capacity) 133.2 kN
Weight 0.089kg
--- Mounting Dimensions
E<sub>B</sub> 20.4mm (+0.2 Tolerance)
E<sub>B1</sub> 14mm
E<sub>H</sub> 2.7mm
--- Other
L<sub>W</sub> (Length rolling element) 13.8mm
a<sub>k</sub> 3mm
Z<sub>e</sub> (Number of rolling elements per row) 9
Associated Rail J5030, S5030
