• INA FF3525 Needle Roller Flat Cage 25mm Width x 75mm Length
  • INA
1 2

SKU: FF3525

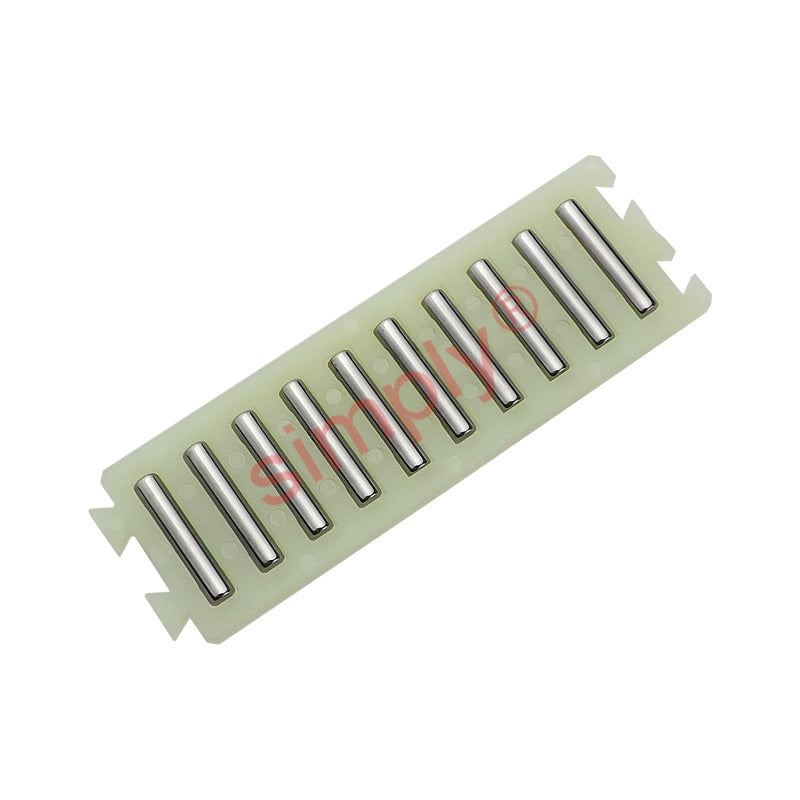

INA FF3525 Needle Roller Flat Cage 25mm Width x 75mm Length

INA FF3525 Needle Roller Flat Cage 25mm Width x 75mm Length
$7.23 ex VAT
$7.23 ex VAT
Sale Sold out

In stock

Price Break
10+ $4.84
19+ $4.57
29+ $4.52
39+ $4.46
49+ $4.41
74+ $4.35
99+ $4.08
199+ $4.03
249+ $3.97
499+ $3.92
999+ $3.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Needle Roller Flat Cages: Needle roller flat cages made up of numerous rolling elements. This ensures very high load capacities and precision. As the needle rollers are installed in a flat cage, needle roller flat cages use a small amount of space.
Brand / Quality:
INA - High Quality
Width:
25mm
Length:
75mm
Technical
--- Main Dimensions
l<sub>ke</sub> (Length) 75mm
D<sub>W</sub> (Rolling element diameter) 3.5mm
B (Width) 25mm
T (Cage Thickness) 3mm
C (Dynamic load capacity) 64.7 kN
C<sub>0</sub> (Static load capacity) 177.3 kN
Weight 0.0045kg
--- Mounting Dimensions
E<sub>B</sub> 25.4mm (+0.2 Tolerance)
E<sub>B1</sub> 18mm
E<sub>H</sub> 3.2mm
--- Other
L<sub>W</sub> (Length rolling element) 17.8mm
a<sub>k</sub> 3mm
Z<sub>e</sub> (Number of rolling elements per row) 10
Associated Rail J5530, S5530
