• Simplicity FG18 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 18x28x30mm Allow 2-3 Days
1 1

SKU: FG18-PBC

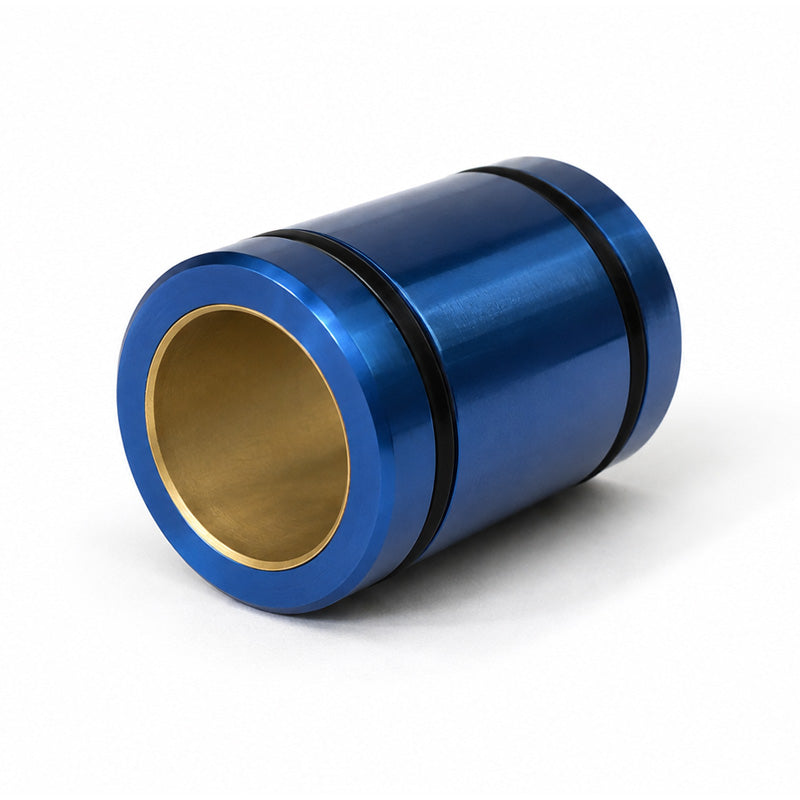

Simplicity FG18 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 18x28x30mm Allow 2-3 Days

Simplicity FG18 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 18x28x30mm Allow 2-3 Days
$58.09 ex VAT
$58.09 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
PBC - High Quality
Inside Diameter:
18mm
Outside Diameter:
28mm
Length:
30mm
Technical
Nominal Size 18mm
Bearing ID A Min 18.02mm
Bearing ID A Max 18.053mm
Outside Diameter B h7 Min 27.98mm
Outside Diameter B h7 Max 28mm
Length C Min 29.619mm
Length C Max 30mm
Concentric Max 0.0254mm
Between O-Ring Grooves J 14mm
O-Ring Grooves Width JA 3.175mm
O-Ring Grooves Diameter JB 23.885mm
O-Ring Size 23.5x2.5
O-Ring Part No. 6000031
Effective Surface Area 5.4CM<sup>2</sup>
Max Static Load Frelon&reg; 11125 N
PV Max 0.7 N/mm<sup>2</sup>
Speed Running Dry 1.52 (m/s)
Speed Running with Lubrication 4.19 (m/s)
