• Simplicity FG20 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 20x32x35mm Allow 2-3 Days
1 1

SKU: FG20-PBC

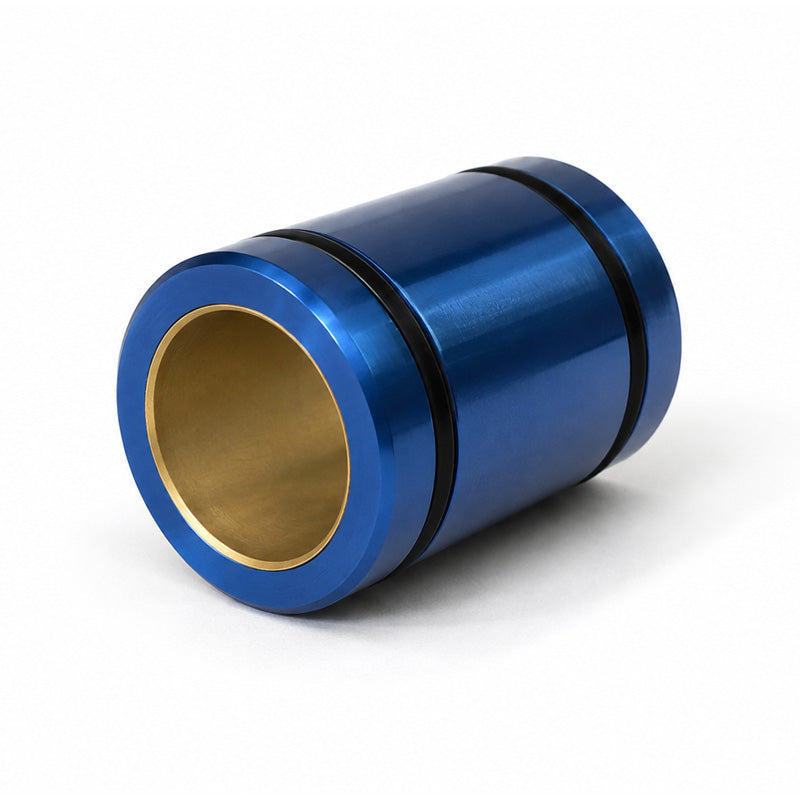

Simplicity FG20 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 20x32x35mm Allow 2-3 Days

Simplicity FG20 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 20x32x35mm Allow 2-3 Days
$49.64 ex VAT
$49.64 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
PBC - High Quality
Inside Diameter:
20mm
Outside Diameter:
32mm
Length:
35mm
Technical
Nominal Size 20mm
Bearing ID A Min 20.02mm
Bearing ID A Max 20.053mm
Outside Diameter B h7 Min 31.98mm
Outside Diameter B h7 Max 32mm
Length C Min 34.619mm
Length C Max 35mm
Concentric Max 0.0254mm
Between O-Ring Grooves J 17mm
O-Ring Grooves Width JA 3.175mm
O-Ring Grooves Diameter JB 27.864mm
O-Ring Size 27.5x2.5
O-Ring Part No. 6000018
Effective Surface Area 7CM<sup>2</sup>
Max Static Load Frelon&reg; 14421 N
PV Max 0.7 N/mm<sup>2</sup>
Speed Running Dry 1.52 (m/s)
Speed Running with Lubrication 4.19 (m/s)
