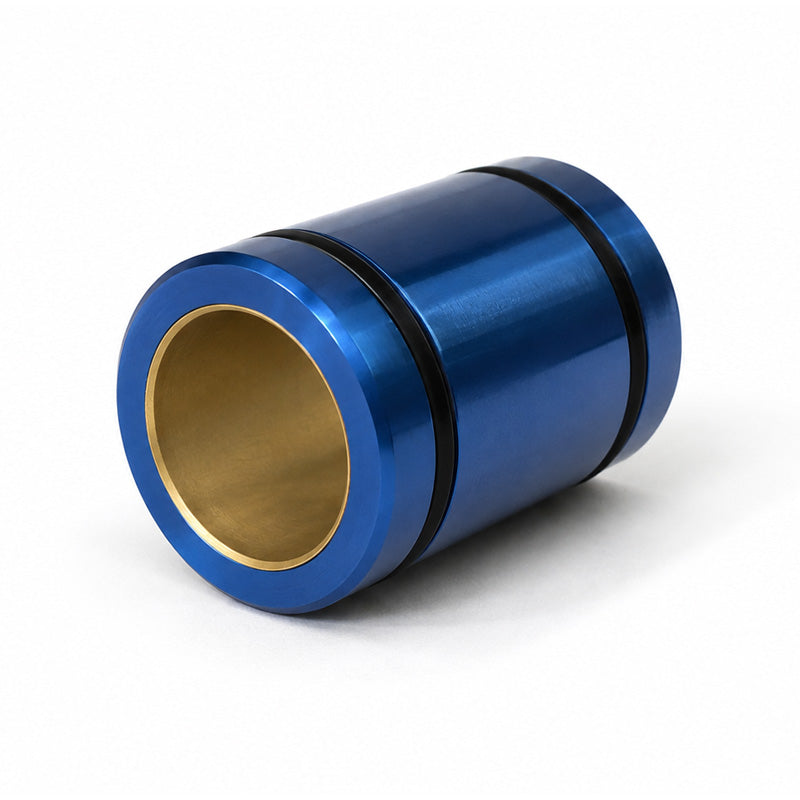

• Simplicity FGC15 Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon Gold Liner 15x25x28mm Allow 2-3 Days
1 1

SKU: FGC15-PBC

Simplicity FGC15 Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon Gold Liner 15x25x28mm Allow 2-3 Days

Simplicity FGC15 Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon Gold Liner 15x25x28mm Allow 2-3 Days
$49.64 ex VAT
$49.64 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
PBC - High Quality
Inside Diameter:
15mm
Outside Diameter:
25mm
Length:
28mm
Technical
Nominal Size 15mm
Bearing ID A Min 15.066mm
Bearing ID A Max 15.093mm
Outside Diameter B h7 Min 24.98mm
Outside Diameter B h7 Max 25mm
Length C Min 27.619mm
Length C Max 28mm
Concentric Max 0.0254mm
Between O-Ring Grooves J 12.7mm
O-Ring Grooves Width JA 3.175mm
O-Ring Grooves Diameter JB 20.671mm
O-Ring Size 20x2.65
O-Ring Part No. 6000029
Effective Surface Area 4.2CM<sup>2</sup>
Max Static Load Frelon&reg; 8652 N
PV Max 0.7 N/mm<sup>2</sup>
Speed Running Dry 1.52 (m/s)
Speed Running with Lubrication 4.19 (m/s)
