SKU: FHRE-1-1/8

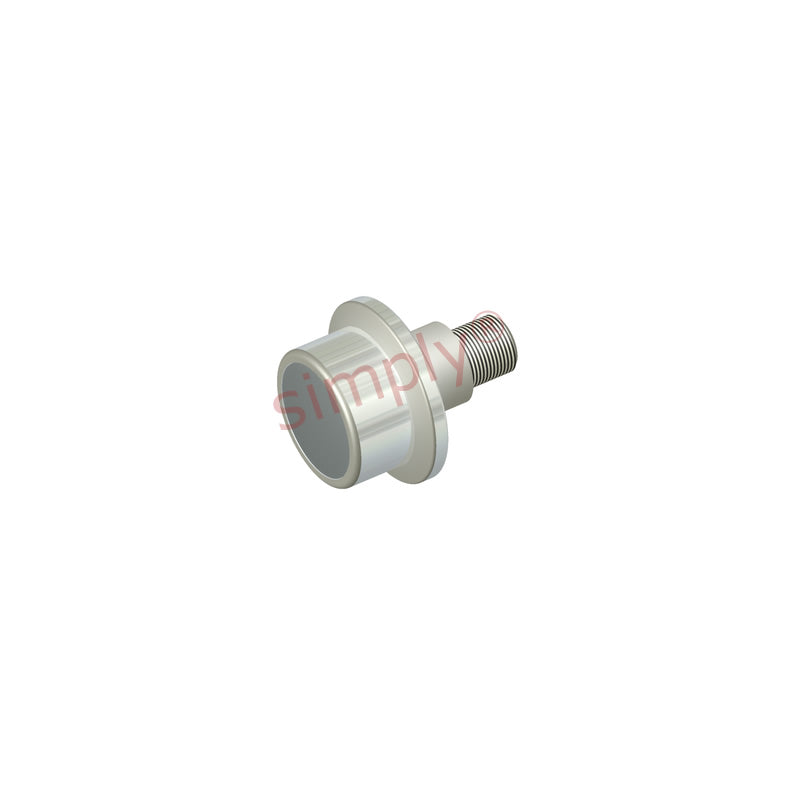

Major Brand FHRE1-1/8 Hex Head Flanged Eccentric Hi-Roller Bearing 1-1/8 inch Outside Diameter Allow 7-10 Days
Major Brand FHRE1-1/8 Hex Head Flanged Eccentric Hi-Roller Bearing 1-1/8 inch Outside Diameter Allow 7-10 Days
Equivalent to: FHRE-112-A FLRE-1-1/8
Out of stock
Description
Description
|
Flanged Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Width:
- 19.84mm = 0.781 (25/32) inch
Technical
Technical
| A | 1.125 inch |
|---|---|
| B | 0.781 inch |
| C | 1.5 inch |
| D | 0.219 inch |
| L | 1 inch |
| M | 0.5 inch |
| Thread class 2A N | 7/16-20 UNF |
| R | 0.75 inch |
| S | 0.031 inch |
| T | 0.625 inch |
| U | 0.5 inch |
| W | 0.03 inch |
| Basic dynamic rating | 630 lbs |
| Dynamic thrust load rating | 140 lbs |
| Max static capacity | 230 lbs |
