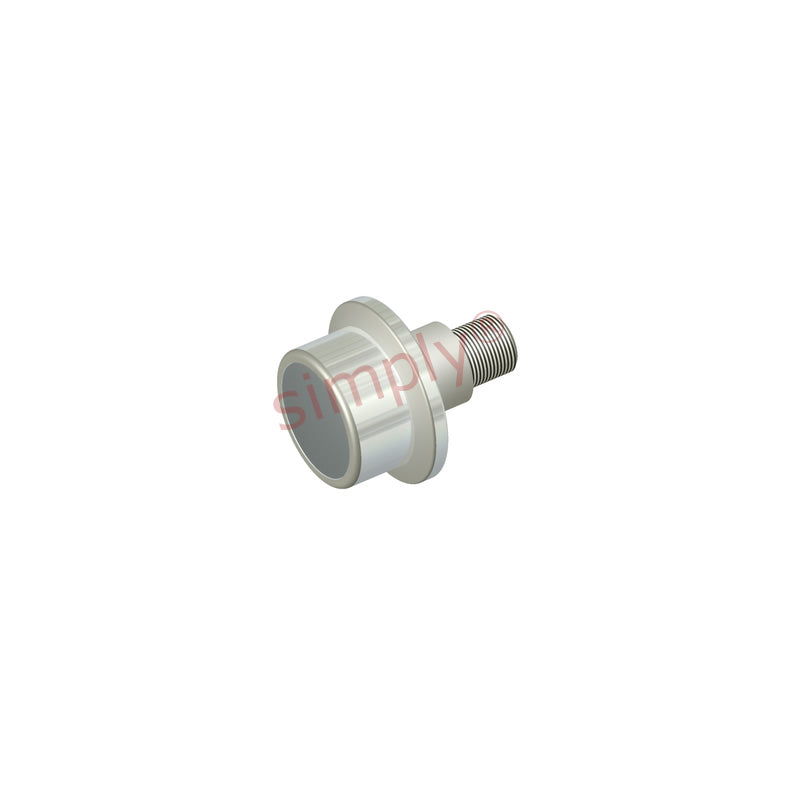

• Major Brand FHRE4 Hex Head Flanged Eccentric Hi-Roller Bearing 4 inch Outside Diameter Allow 7-10 Days
1 1

SKU: FHRE-4

Major Brand FHRE4 Hex Head Flanged Eccentric Hi-Roller Bearing 4 inch Outside Diameter Allow 7-10 Days

Major Brand FHRE4 Hex Head Flanged Eccentric Hi-Roller Bearing 4 inch Outside Diameter Allow 7-10 Days
$479.01 ex VAT
$479.01 ex VAT
Sale Sold out

Equivalent to: FHRE-400-A FCFE-4 FLRE-4

In stock

Price Break
3+ $320.85
4+ $302.83
9+ $299.22
19+ $295.62
29+ $292.01
39+ $288.41
49+ $270.38
59+ $266.77
249+ $263.17
499+ $259.56
999+ $252.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Flanged Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud.
Benefits: Ideal for use in environments where dust or high moisture is present.
Brand / Quality:
Major Brand - High Quality
Outside Diameter:
101.6mm = 4 inch
Width:
50.8mm = 2 inch
Technical
A 4 inch
B 2 inch
C 4.938 inch
D 0.594 inch
L 2.75 inch
M 1-3/4 inch
Thread class 2A N 1-1/4-12 UNF
R 2.312 inch
S 0.062 inch
T 1.812 inch
U 1.355 inch
W 0.06 inch
Basic dynamic rating 14270 lbs
Dynamic thrust load rating 12000 lbs
Max static capacity 20000 lbs
