• INA FLCTE15XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 15mm Bore
  • INA
1 2

SKU: FLCTE15-XL-INA

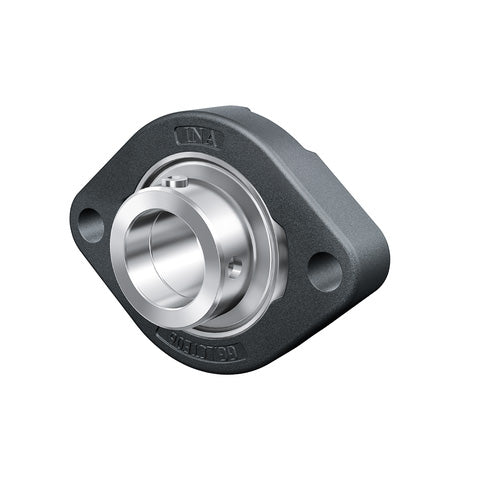

INA FLCTE15XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 15mm Bore

INA FLCTE15XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 15mm Bore
$38.89 ex VAT
$38.89 ex VAT
Sale Sold out

In stock

Price Break
4+ $26.05
9+ $24.59
19+ $24.29
29+ $24.00
39+ $23.71
49+ $23.42
59+ $21.95
69+ $21.66
79+ $21.37
89+ $21.07
99+ $20.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft.
Note: This housing unit does not have a relubrication facility.
Benefits: Eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
15mm
Style:
FLCTE
Bolt Hole Centres:
63.5mm
Technical
d 15mm
H 81mm
U 30.5mm
A1 15mm
A2 8.4mm
B1 28.6mm
d3 max 28.4mm
J 63.5mm
L 58.7mm
N 6.6mm
Mass 0.3 kg
Basic dynamic load rating Cr 10100 N
Basic static load rating Cor 4750 N
Designation of housing LCTE03
Designation of bearing RAE15-XL-NPP-B
