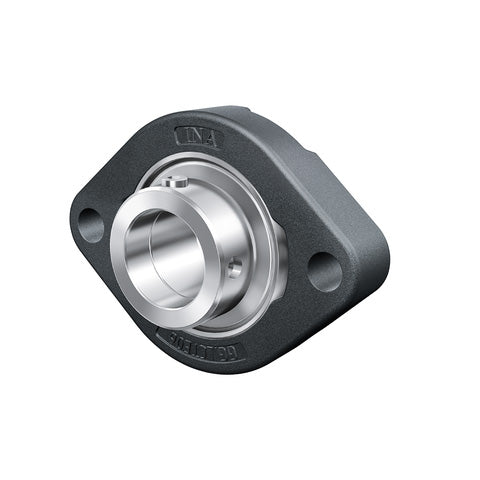

• INA FLCTEY20XL Two Bolt Cast Iron Oval Housing with Grub Screw Insert 20mm Bore
  • INA
1 2

SKU: FLCTEY20-XL-INA

INA FLCTEY20XL Two Bolt Cast Iron Oval Housing with Grub Screw Insert 20mm Bore

INA FLCTEY20XL Two Bolt Cast Iron Oval Housing with Grub Screw Insert 20mm Bore
$37.04 ex VAT
$37.04 ex VAT
Sale Sold out

In stock

Price Break
4+ $24.81
9+ $23.42
19+ $23.14
29+ $22.86
39+ $22.58
49+ $22.30
59+ $20.91
69+ $20.63
79+ $20.35
89+ $20.07
99+ $19.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft.
Note: This housing unit does not have a relubrication facility.
Benefits: Grub screw fixing, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Style:
FLCTEY
Bolt Hole Centres:
71.4mm
Technical
d 20mm
H 90.5mm
U 27mm
A1 17mm
A2 9.5mm
B 25mm
J 71.4mm
L 66.5mm
N 9mm
Mass 0.36 kg
Basic dynamic load rating Cr 13600 N
Basic static load rating Cor 6600 N
Designation of housing LCTE04
Designation of bearing AY20-XL-NPP-B
Reviews
View full details
