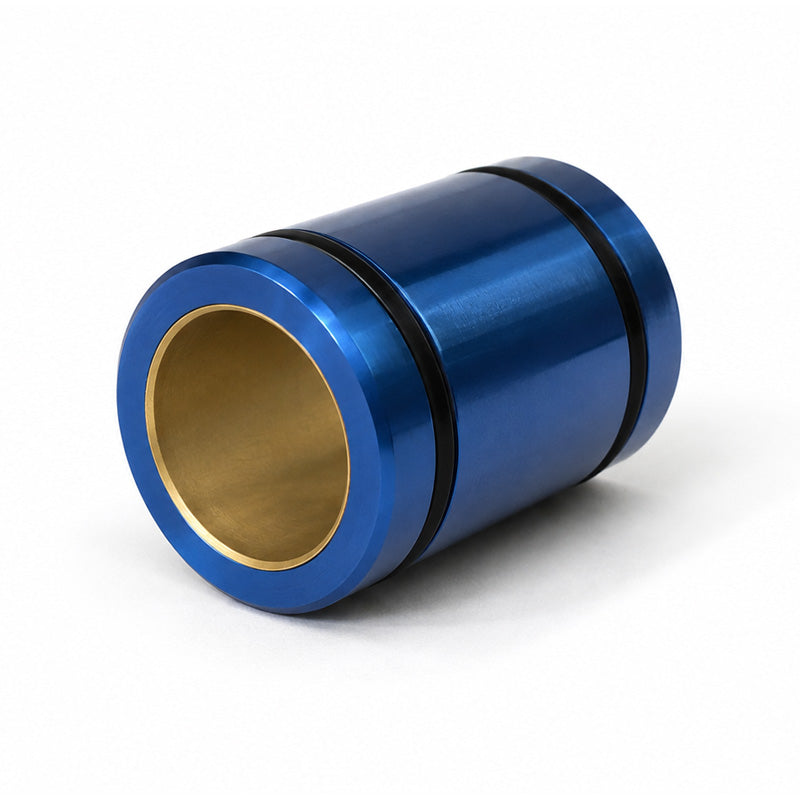

• Simplicity FMT12 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 12x19x28mm Allow 2-3 Days
1 1

SKU: FMT12-PBC

Simplicity FMT12 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 12x19x28mm Allow 2-3 Days

Simplicity FMT12 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 12x19x28mm Allow 2-3 Days
$43.81 ex VAT
$43.81 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
PBC - High Quality
Inside Diameter:
12mm
Outside Diameter:
19mm
Length:
28mm
Technical
Nominal Size 12mm
Bearing ID A Min 12.016mm
Bearing ID A Max 12.043mm
Outside Diameter B h7 Min 18.979mm
Outside Diameter B h7 Max 19mm
Length C Min 27.619mm
Length C Max 28mm
Concentric Max 0.0254mm
Between O-Ring Grooves J 14mm
O-Ring Grooves Width JA 2mm
O-Ring Grooves Diameter JB 16.6mm
O-Ring Size 16x1.5
O-Ring Part No. 6000027
Effective Surface Area 3.4CM<sup>2</sup>
Max Static Load Frelon&reg; 6926 N
PV Max 0.7 N/mm<sup>2</sup>
Speed Running Dry 1.52 (m/s)
Speed Running with Lubrication 4.19 (m/s)
