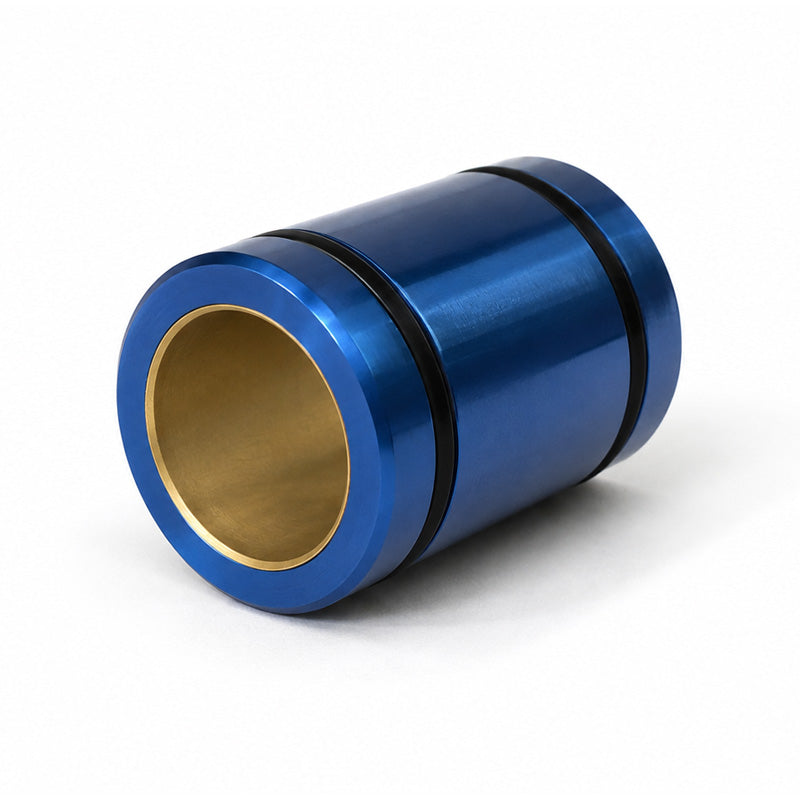

• Simplicity FMT25E Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon J Liner 25x35x40mm Allow 2-3 Days
1 1

SKU: FMT25-E-PBC

Simplicity FMT25E Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon J Liner 25x35x40mm Allow 2-3 Days

Simplicity FMT25E Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon J Liner 25x35x40mm Allow 2-3 Days
$88.76 ex VAT
$88.76 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
PBC - High Quality
Inside Diameter:
25mm
Outside Diameter:
35mm
Length:
40mm
Technical
Nominal Size 25mm
Bearing ID A Min 25.02mm
Bearing ID A Max 25.053mm
Outside Diameter B h7 Min 34.975mm
Outside Diameter B h7 Max 35mm
Length C Min 39.619mm
Length C Max 40mm
Concentric Max 0.0254mm
Between O-Ring Grooves J 22mm
O-Ring Grooves Width JA 3.2mm
O-Ring Grooves Diameter JB 30.9mm
O-Ring Size 30.5x2.5
O-Ring Part No. 6000033
Effective Surface Area 10CM<sup>2</sup>
Max Static Load Frelon&reg; 10301 N
PV Max 0.35 N/mm<sup>2</sup>
Speed Running Dry 0.71 (m/s)
Speed Running with Lubrication 2.03 (m/s)
