• Simplicity FMT50 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 50x62x70mm Allow 2-3 Days
1 1

SKU: FMT50-PBC

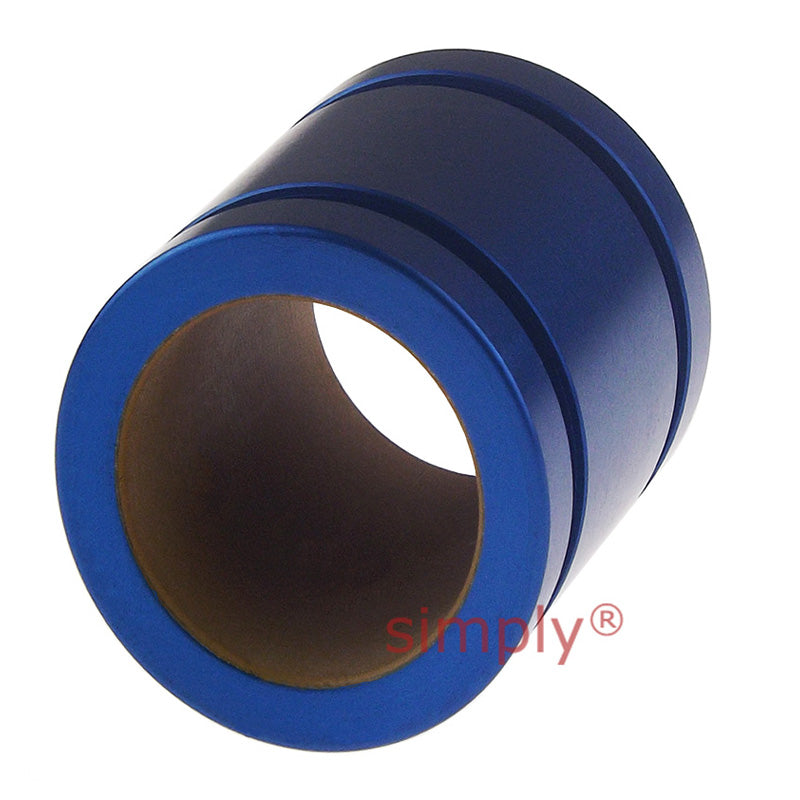

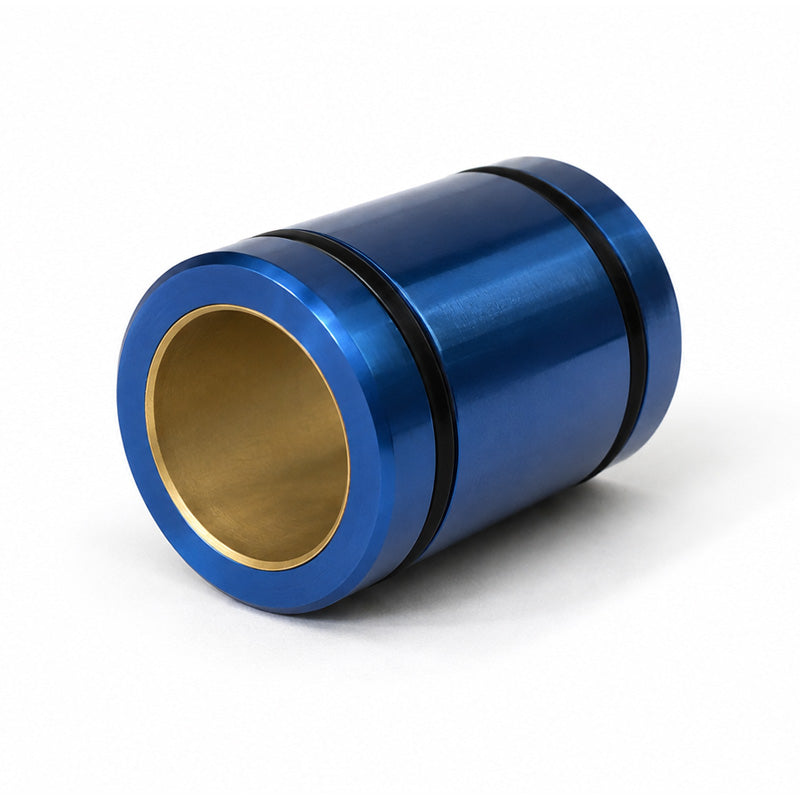

Simplicity FMT50 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 50x62x70mm Allow 2-3 Days

Simplicity FMT50 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 50x62x70mm Allow 2-3 Days
$238.45 ex VAT
$238.45 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
PBC - High Quality
Inside Diameter:
50mm
Outside Diameter:
62mm
Length:
70mm
Technical
Nominal Size 50mm
Bearing ID A Min 50.025mm
Bearing ID A Max 50.064mm
Outside Diameter B h7 Min 61.97mm
Outside Diameter B h7 Max 62mm
Length C Min 69.619mm
Length C Max 70mm
Concentric Max 0.0254mm
Between O-Ring Grooves J 50mm
O-Ring Grooves Width JA 4.1mm
O-Ring Grooves Diameter JB 56.3mm
O-Ring Size 26x3.5
O-Ring Part No. 6000021
Effective Surface Area 35CM<sup>2</sup>
Max Static Load Frelon&reg; 72104 N
PV Max 0.7 N/mm<sup>2</sup>
Speed Running Dry 1.52 (m/s)
Speed Running with Lubrication 4.19 (m/s)
