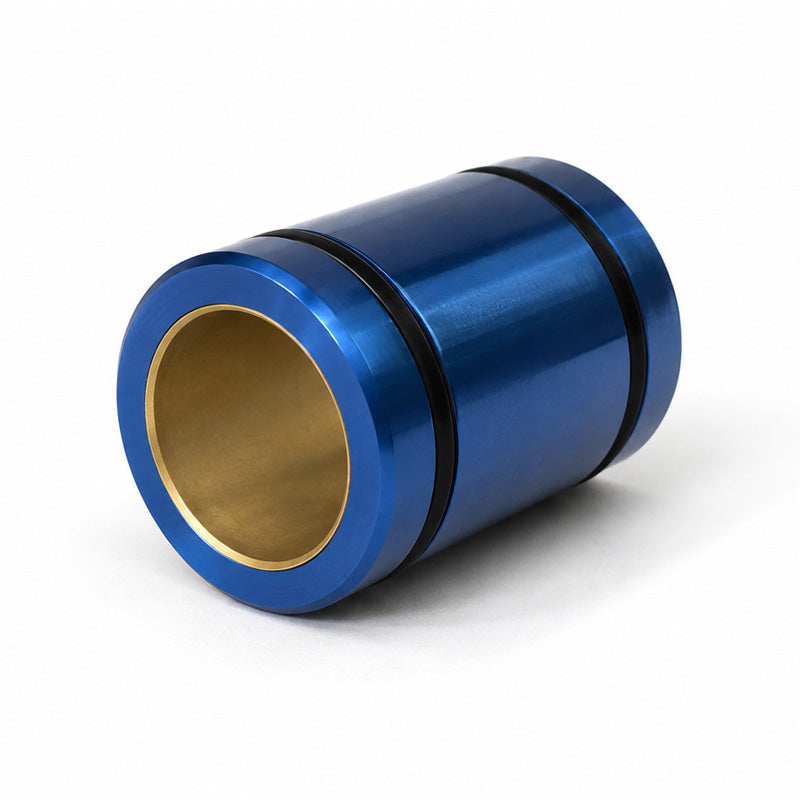

• Simplicity FMTC10 Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon Gold Liner 10x17x26mm Allow 2-3 Days
1 1

SKU: FMTC10-PBC

Simplicity FMTC10 Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon Gold Liner 10x17x26mm Allow 2-3 Days

Simplicity FMTC10 Metric Compact Compensated Thin Wall Linear Plain Bearing with Frelon Gold Liner 10x17x26mm Allow 2-3 Days
$43.04 ex VAT
$43.04 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
PBC - High Quality
Inside Diameter:
10mm
Outside Diameter:
17mm
Length:
26mm
Technical
Nominal Size 10mm
Bearing ID A Min 10.063mm
Bearing ID A Max 10.085mm
Outside Diameter B h7 Min 16.982mm
Outside Diameter B h7 Max 17mm
Length C Min 25.619mm
Length C Max 26mm
Concentric Max 0.0254mm
Between O-Ring Grooves J 12mm
O-Ring Grooves Width JA 2mm
O-Ring Grooves Diameter JB 14.4mm
O-Ring Size 14x1.6
O-Ring Part No. 6000026
Effective Surface Area 2.6CM<sup>2</sup>
Max Static Load Frelon&reg; 5356 N
PV Max 0.7 N/mm<sup>2</sup>
Speed Running Dry 1.52 (m/s)
Speed Running with Lubrication 4.19 (m/s)
